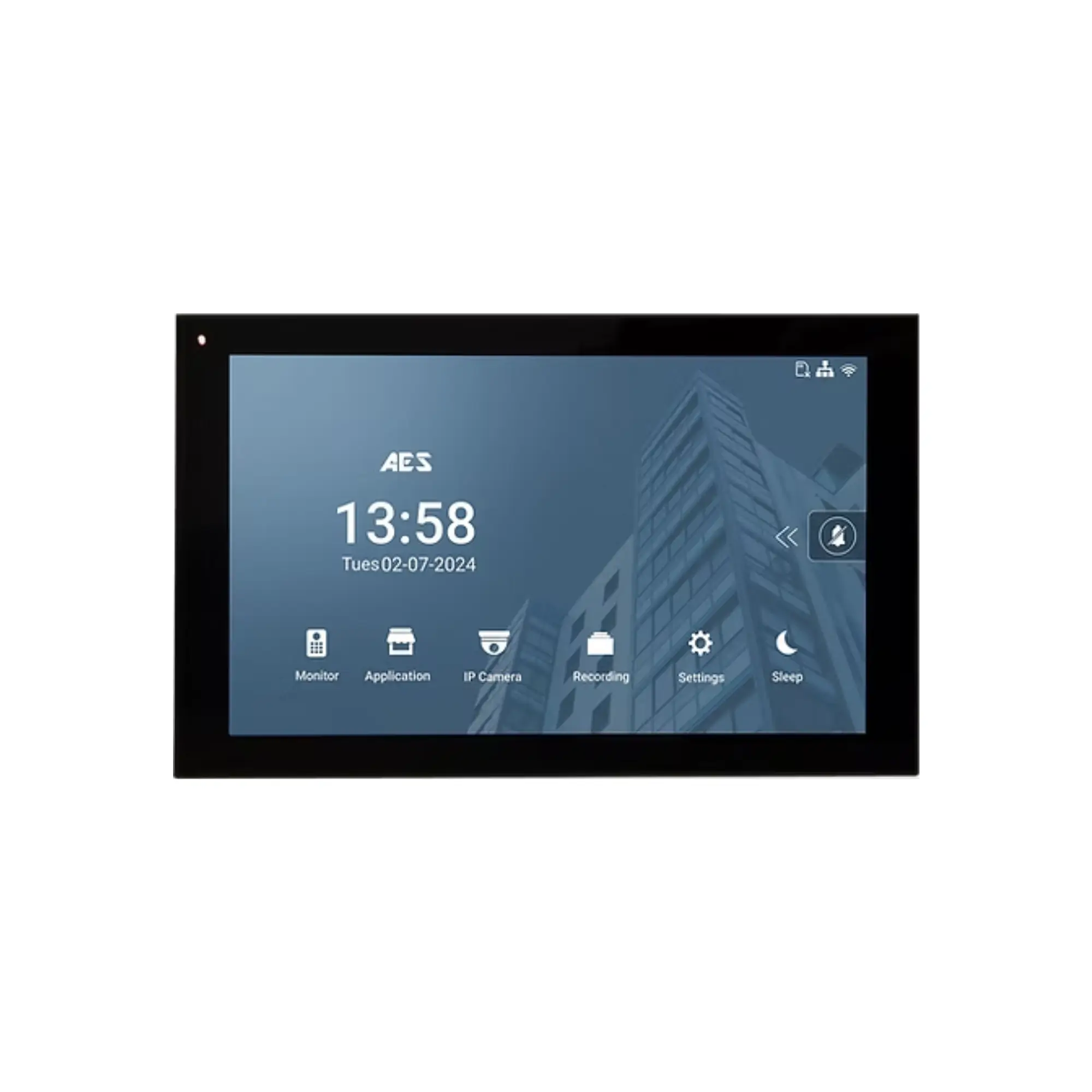

AES OPYN-MON – Opyn 7″ TFT Touch Screen Monitor
Excl VAT: £261.25
£313.50
inc. VATThe AES OPYN-MON is a high-performance 7” IPS TFT Android touchscreen monitor designed for seamless integration with the AES Opyn intercom system. Boasting a crisp 1024×600 resolution, this flush-mountable unit brings clarity and responsiveness to access control environments.
Engineered for flexibility, it supports both Wi-Fi and Ethernet connections and integrates effortlessly with SIP, IP cameras, and Android applications. Whether you’re installing in a commercial or residential environment, the OPYN-MON adds sophistication and usability to your setup. Featuring Android 12, echo-cancelling full-duplex audio, and up to 128GB SD storage, it’s the perfect complement to any Opyn door entry system.
Key Features:
- High-Resolution Display: 7” IPS TFT screen with 1024×600 resolution.
- Android 12 OS: Smooth performance with app integration capabilities.
- SIP & IP Camera Compatible: Easily integrates with modern intercom and surveillance systems.
- Dual Connectivity: Supports both Ethernet and dual-band Wi-Fi (2.4GHz & 5GHz).
- Flexible Mounting Options: Wall-mounted flush design; desk bracket available separately.
- Expandable Storage: SD card support up to 128GB.
- Premium Build: Stylish glass and ABS body with CE, FCC, and ROHS approvals.
Category:
AES IntercomsFull Description
Smart 7-inch IPS Android Touchscreen for Opyn Intercoms
AES OPYN-MON 7” IPS TFT Android monitor for AES Opyn systems. Sleek, wall-mountable touchscreen with SIP, IP camera, and app integration.
Key Features of the AES OPYN-MON:
- 7” IPS Display: the AES OPYN-MON has a crisp and responsive TFT touchscreen for visual clarity.
- Android OS: Powered by Android 12 for app compatibility and updates.
- System Integration: Works with SIP, RTSP, and IP surveillance streams.
- Smart Connectivity: Wi-Fi and Ethernet-enabled for flexible installation.
- Expandable Storage: SD card slot (up to 128GB) for extended media handling.
- Dual Audio Support: Full duplex with echo cancellation for clear communication.
- Sleek Mounting Options: Designed for flush installation or desktop mounting.
Technical Specifications:
- Screen: 7” IPS TFT, 1024x600 resolution
- Operating System: Android 12
- Memory & Storage: 2GB DDR / 16GB Flash; SD card (8–128GB)
- Audio Streaming: Full duplex, Echo cancellation
- Audio Codecs: G.711U, G.711A
- Video Codecs: H.264 / H.265
- Connectivity: Wi-Fi (2.4GHz/5GHz), Ethernet (IEEE 802.3)
- Supported Protocols: TCP, UDP, RTP, RTSP, HTTP, SIP
- Power Supply: 12–15V DC or 48V PoE (802.3af)
- Material: Glass & ABS
- Approvals: CE-RED, FCC, ROHS
- Operating Temperature: -10°C to +55°C
- See Full Data Sheet
Specifications
| Brand | AES |
|---|---|
| Mounting | Flush mount, Surface mount |
| Power Requirement | 12-15 VDC, PoE |
| Operating Temperature | -10°C to 55°C |
| Monitor or Handset Type | Video Touchscreen |
| Monitor Size | 7" Touch-Screen |
| Colours | Black |
| SKU | AES-OPYN-MON |
