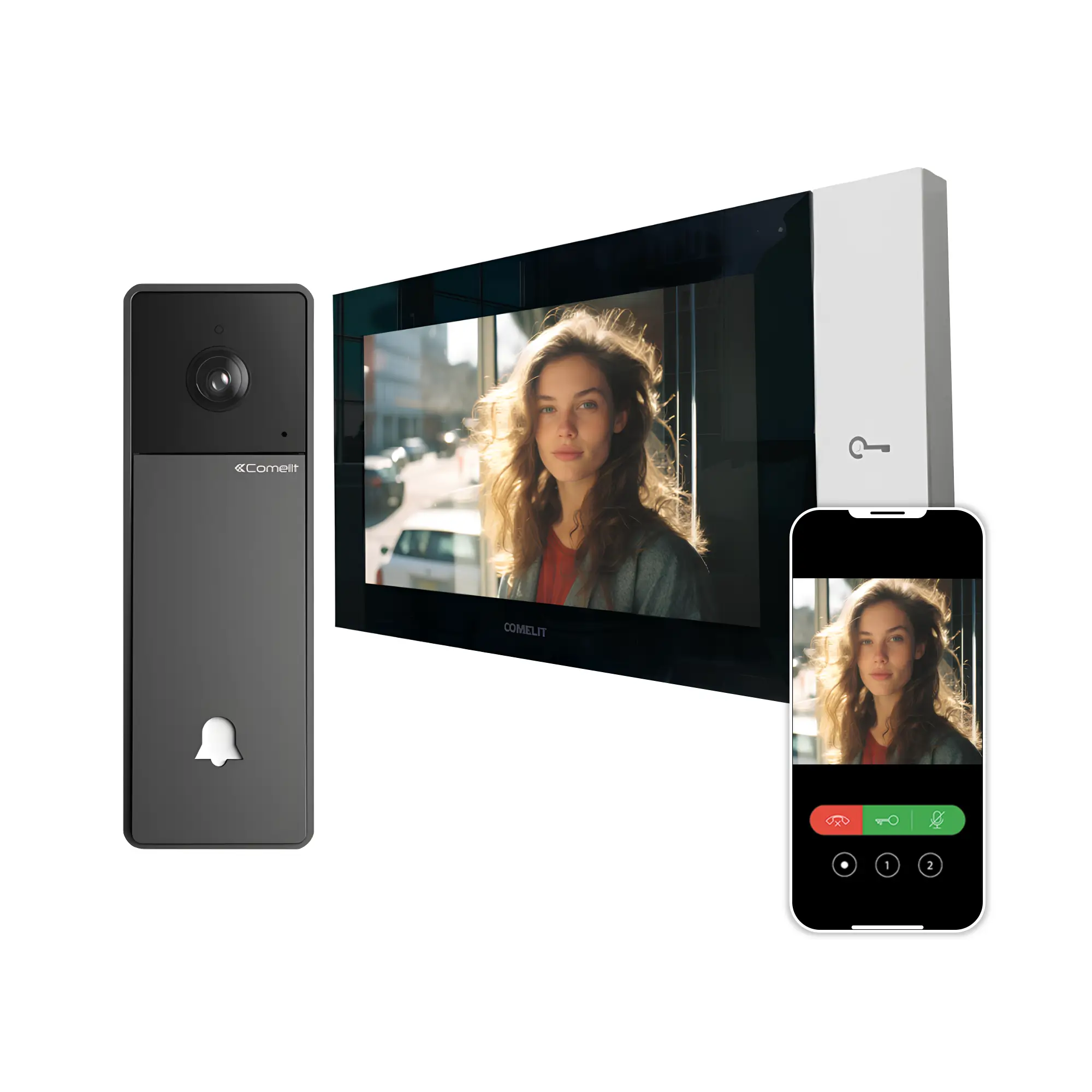

Comelit-PAC KVV8501 – Visto Doorbell Camera & 7TOP Touchscreen Monitor Kit
Excl VAT: £367.99
£441.59
inc. VATThe Comelit-PAC KVV8501 is a complete door entry solution featuring a Visto doorbell camera and a 7TOP hands-free internal monitor. Designed for smart security without subscriptions, this PoE-powered kit delivers high-definition video, two-way audio, and remote management via the Comelit app.
The Comelit KVV8501 kit includes everything needed for a reliable installation:
-
VS8101A – Visto Ethernet Doorbell Camera: Captures crisp 720p HD video with a 144° wide-angle lens, supports two-way audio, and includes night vision and motion detection. It’s fully IP54-rated for outdoor use and features PoE for simplified wiring.
-
TP6842 – 7TOP 7″ Indoor Wi-Fi Monitor: A sleek, wall-mounted touchscreen monitor with hands-free audio, customisable settings, and remote connectivity via the Comelit Cloud and app support.
-
1488 Power Injector and 1441B 30W Power Supply: Deliver a stable PoE power source for the entire system with easy DIN rail mounting.
The KVV8501 kit supports video memory, message recording for missed visitors, and integration with smart home voice assistants, offering a feature-rich door entry experience with no ongoing costs
Category:
Smart DoorbellsFull Description
The Comelit-PAC KVV8501 Visto Doorbell Camera and 7TOP Indoor Monitor Kit is a comprehensive smart access control system built for modern homes and small commercial premises. Perfect for users who want a doorbell camera without a subscription, this plug-and-play IP (ViP) system provides HD video, real-time communication, and remote app control with no monthly fees.
Key Features of the KVV8501:
Visto Doorbell Camera (VS8101A)
- HD 720p resolution with 144° wide-angle view
- Two-way audio with echo cancellation & noise reduction
- Weatherproof IP54 rating – ideal for outdoor use
- Mechanical call button with LED backlight
- PoE powered – simple single cable setup
- Secure access control relay
7TOP Indoor Wi-Fi Monitor (TP6842)
- 7" capacitive touch display with 1024x600 resolution
- Hands-free audio with full-duplex communication
- Customisable ringtones, brightness & volume controls
- Built-in Wi-Fi and Ethernet connectivity
- Comelit Cloud integration – supports app control, firmware updates
- Video memory & message for missed visitors
- Intercom & panic call functions
- Integration with voice assistants
Power & Connectivity
- 1488 Power Injector – Connects & powers both units via PoE
- 1441B 30W Power Supply Unit – DIN-rail mountable, high-efficiency
Technical Specifications:

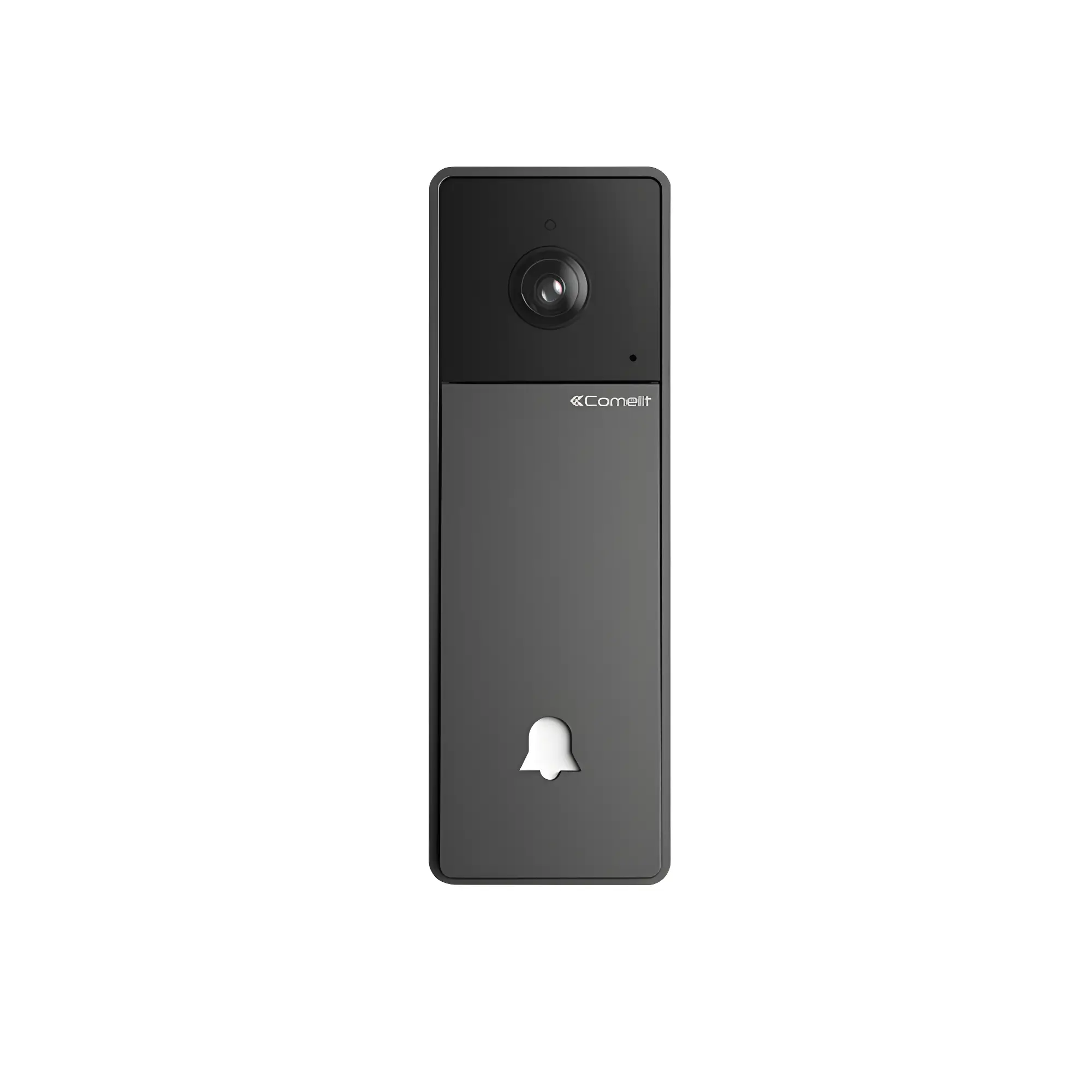

VS8101A – Visto Ethernet Doorbell Camera
- Resolution: 1280x720 (HD)
- Lens: 1/4” CMOS, 144° (H) x 78° (V)
- Audio: Full-Duplex, Echo Cancellation
- Connection: Ethernet 10/100 Mbit/s, Auto IP/DHCP/Static
- Power: IEEE 802.3af PoE (37–57 VDC), Class 2
- Operating Temp: -25°C to +55°C
- IP Rating: IP54
- Dimensions: 136 x 47 x 28 mm
- Weight: 155g
- See Full Data Sheet
TP6842 – 7TOP Indoor Monitor
- Display: 7” capacitive touch, 1024x600 resolution
- Audio: Hands-free with omnidirectional mic & 1W speaker
- Network: Ethernet (RJ45), Wi-Fi 2.4 GHz
- Memory: Supports micro-SD (not included)
- Power: IEEE 802.3af PoE (37–57 VDC)
- Operating Temp: 5°C to +40°C
- IP Rating: IP30
- Dimensions: 210 x 120 x 21 mm
- Weight: 570g

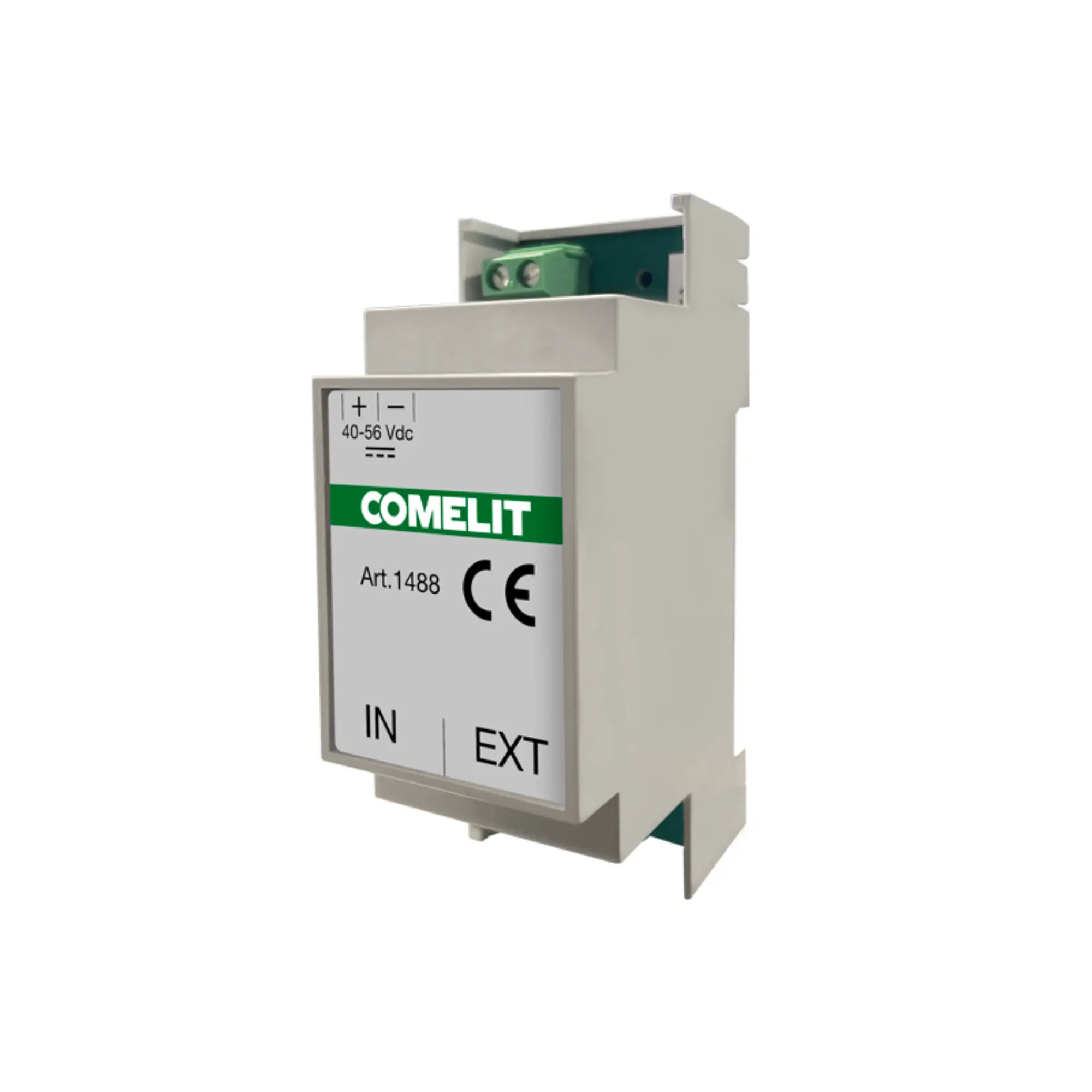

Power Injector (1488)
- Inputs: 48–56 VDC
- Ports: 2 x RJ45 (INT & EXT)
- Mounting: DIN rail (2 modules)
- Dimensions: 36 x 90 x 58 mm
Power Supply Unit (1441B)
- Input: 110–240 VAC
- Output: 48 VDC, 30W
- Mounting: DIN rail (4 modules)
- Dimensions: 72 x 93 x 56 mm
Why Choose the Comelit-PAC KVV8501 Kit?
- No Subscription Fees – All smart features included without recurring costs
- Complete Solution – Everything you need in one kit
- HD Video & Two-Way Audio – Stay connected wherever you are
- Remote Management – Control via Comelit App & Cloud
- Voice Assistant Integration – Works with smart home systems
- Stylish & Durable Design – High-quality ABS & glass finishes
- Peace of Mind – Smart alerts, video memory, and secure access
Specifications
| Brand | Comelit-PAC |
|---|---|
| Resolution | 720p |
| Monitor or Handset Type | App, Video Touchscreen |
| Monitor Size | 7" Touch-Screen |
| connection-type | Ethernet, Wi-Fi |
| Power Requirement | PoE |
| Protection Rating | IP54 |
| Device Type | Doorbell |
| Kit | Yes |
| SKU | COM-KVV8501 |
