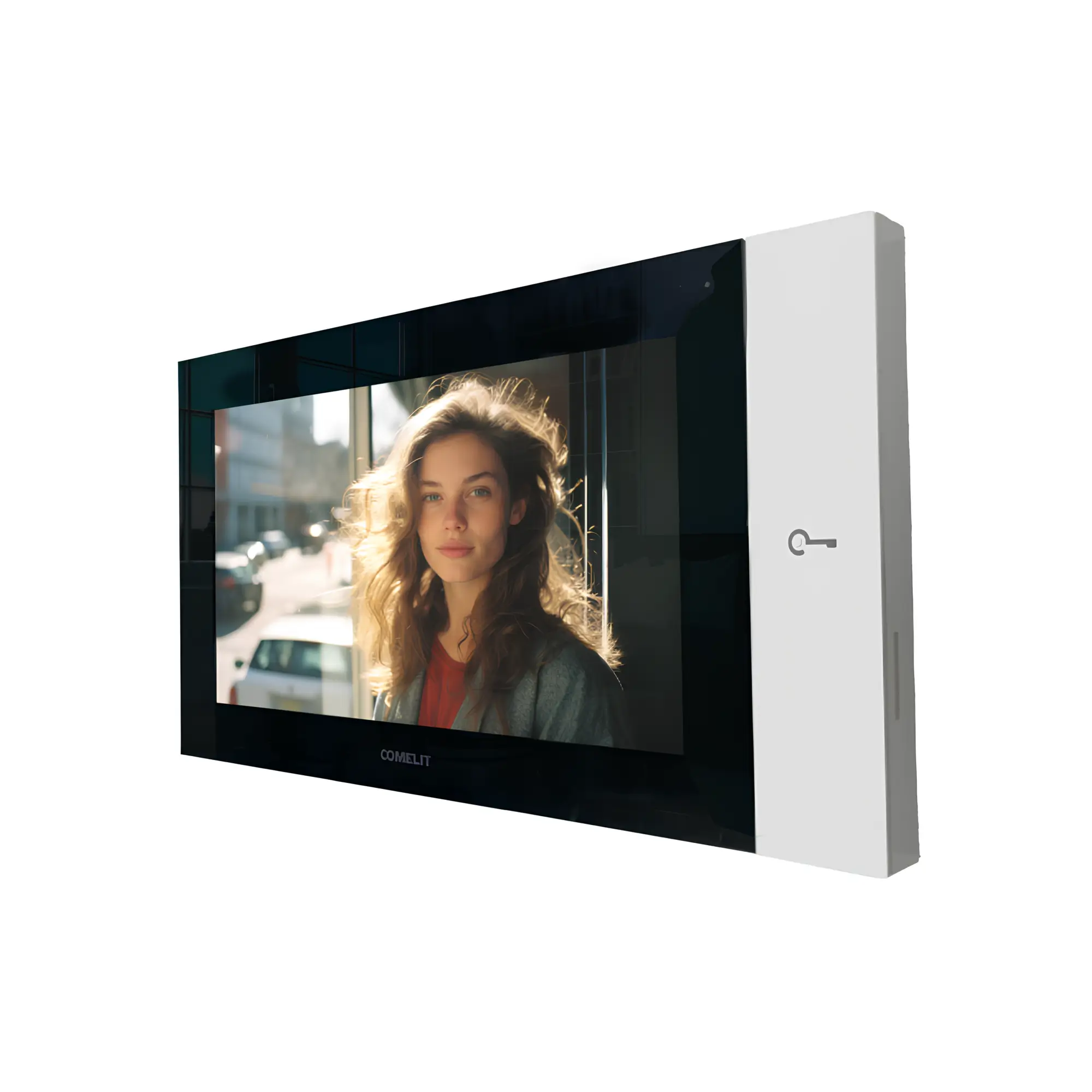

Comelit-Pac TP6842 – 7TOP 7-inch Hands-free Door Entry Monitor with Wi-Fi
Excl VAT: £195.47 - £403.60
Price range: £234.56 through £484.32
inc. VATThe Comelit-Pac TP6842 7TOP is a 7-inch hands-free door entry monitor designed for VIP systems. With Wi-Fi and Ethernet connectivity, a capacitive touchscreen, and Comelit Cloud integration, it ensures seamless access control and remote communication.
Key Features:
- 7-inch Capacitive Touchscreen – Intuitive operation with a 1024×600 resolution.
- Hands-free Full-Duplex Audio – Clear, high-quality communication.
- Wi-Fi & Ethernet Connectivity – Connects to the Comelit Cloud for remote access via smartphone.
- PoE-Powered – Supports IEEE 802.3af PoE for easy installation.
- Mechanical Lock-Release Button – Secure access control with backlit icon.
- Customisable Interface – User-friendly navigation with an icon-based menu.
- Call Divert & Video Memory – Never miss a visitor with remote call forwarding and event recording.
- Silent Mode & Auto Answer – Privacy features for greater convenience.
- Programmable Inputs & Outputs – Integrates with home automation and alarm systems.
- Flexible Mounting Options – Wall or desktop mounting (stand sold separately).
Category:
Comelit IntercomsFull Description
The Comelit-Pac TP6842 7TOP is a premium 7-inch hands-free door entry monitor with advanced Wi-Fi and Ethernet connectivity. Designed for VIP systems, it features an intuitive capacitive touchscreen (1024x600 resolution), a mechanical lock-release button, and a modern, minimalist design.
The full-duplex hands-free audio ensures clear two-way communication, while Comelit Cloud integration allows users to receive door entry calls on their smartphone via the Comelit app, even when away from home. Powered via PoE or a dedicated 48V power supply, it offers flexible installation options, including wall mounting (metal backplate included) or desktop mounting (stand available separately).
With built-in features like call divert, video memory, silent mode, alarm management, and auto lock-release, the Comelit-Pac TP6842 is an ideal solution for residential and commercial security systems.
Technical Specifications:
General Data:
- Model: Comelit-Pac TP6842 7TOP
- Dimensions (W x H x D): 210 x 120 x 21 mm
- Weight: 570g
- Colours: White (RAL9003), Black (RAL9005)
- Materials: ABS, Glass
- Mounting Options: Wall-mounted (included), Desk-mounted (stand sold separately)
Display & Audio:
- Screen Size: 7-inch TFT
- Resolution: 1024x600 pixels
- Aspect Ratio: 16:9
- Touchscreen: Capacitive
- Microphone: Ø6mm, Omnidirectional
- Speaker: Ø36mm, 8 Ohm, 1W
- Audio Technology: Full-Duplex
- Induction Loop: Yes (TP6842BM only)
Connectivity & Power:
- Network: Ethernet 10/100 Mbit/s
- Wi-Fi: 2.4GHz
- Power Supply: PoE (37-57V DC), Comelit PoE (56V DC)
- Standby Power Consumption: 2.4W
- Maximum Power Consumption: 6W
- Communication Ports: RJ45 Ethernet, MicroSD (not supplied)
- IP Address Assignment: DHCP, Auto IP, Static IP
Software & Features:
- Operating System: Linux Embedded
- Comelit Cloud Support: Yes
- Firmware Updates: Via Comelit Cloud
- App Compatibility: Comelit Video Entry App
- Smart Features: Call divert, alarm integration, auto-answer, customisable ringtones, event recording
Environmental & Compliance:
- IP Rating: IP30
- Operating Temperature: 5°C to 40°C
- Operating Humidity: 25% – 75%
- Certifications: RoHS II, EMC 2014/30/UE
- See Data Sheet
What’s in the Box?
- 1 x Comelit-Pac TP6842 7TOP Door Entry Monitor
- 1 x Wall-Mounting Metal Backplate
- Installation & User Guide
Why Choose the Comelit-Pac TP6842 7TOP?
- Premium 7-inch Touchscreen – Clear, responsive display for effortless operation.
- Smart Home Integration – Works with Comelit Cloud for remote access.
- Secure Communication – Hands-free audio and door lock control.
- Easy Installation – PoE support and wall-mounting bracket included.
- Ideal for VIP Systems – Advanced security features for residential and commercial use.
Specifications
| Weight | 570 g |
|---|---|
| Dimensions | N/A |
| Brand | Comelit-PAC |
| Mounting | Desk Mounting (accessory required), Surface mount |
| Power Requirement | 37-57VDC, PoE |
| Operating Temperature | 5°C to 40°C |
| Monitor or Handset Type | Video Handsfree |
| Monitor Size | 7" Touch-Screen |
| Colours | White |
| features | Induction Loop |
| Protection Rating | IP30 |
| SKU | COM-TP6842BM, COM-TP6842 |
