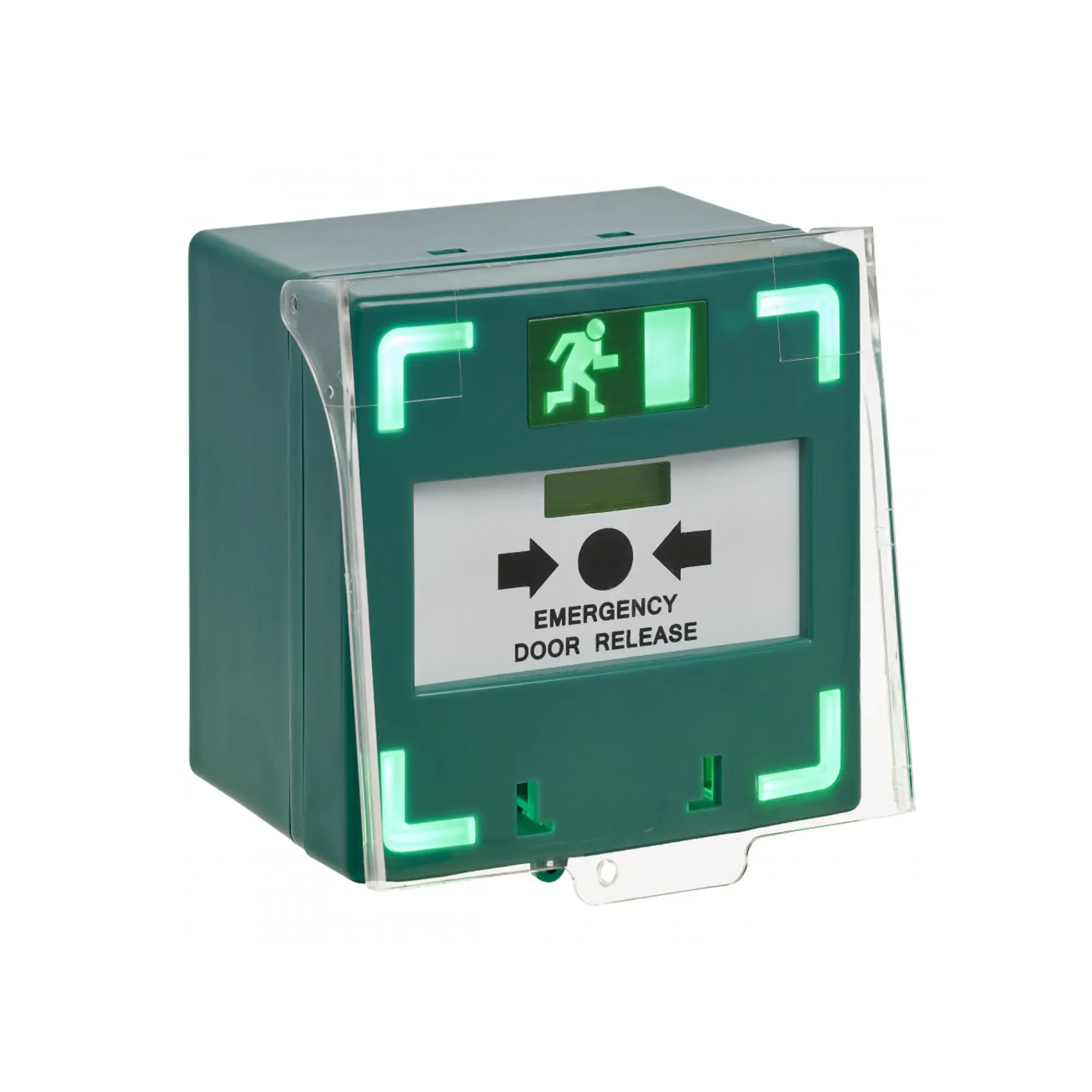

CP3-LSRC-DB – Triple Pole Resettable Emergency Door Release With Deep Back Box
Excl VAT: £20.70
£24.84
inc. VATThe CP3-LSRC-DB is a versatile triple pole emergency break glass unit (BGU) designed for reliable emergency door release. This unit comes complete with a deep back box, making it suitable for both surface and flush mounting, and features convenient resettable functionality, a dual-colour LED, and an audible sounder for clear indication.
Key Features:
- Triple Pole Contacts: Provides three independent contact sets (NO/NC) for flexible wiring and integration with various access control and security systems.
- Resettable Mechanism: Allows for quick and easy resetting after activation using the provided key, eliminating the need to replace fragile glass and reducing maintenance costs.
- Deep Back Box Included: Facilitates both surface and flush mounting options, providing flexibility for different installation environments and ensuring ample wiring space.
- Integrated Audible Sounder: Features an adjustable sounder with a range of 65 to 85dB, providing a clear alert upon activation to draw immediate attention.
- Dual-Colour LED Indicator: Incorporates a bi-coloured LED, which is also adjustable, to visually indicate the unit’s operational status (e.g., armed, activated).
- Protective Cover: Supplied as standard to help prevent accidental activation while maintaining easy access for emergencies.
- Single Gang Design: Compatible with standard single-gang electrical boxes for straightforward installation.
- Wide Power Compatibility: Operates efficiently on both 12Vdc and 24Vdc power supplies.
- Robust Contact Rating: Contacts are rated at 3A @ 125V for reliable switching of electronic locks.
Also available with a low-profile back box
Category:
Breakglass UnitsFull Description
Dual-Colour LED, and Audible Sounder for Enhanced Safety
The CP3-LSRC-DB is a highly versatile triple pole resettable emergency door release unit, often referred to as a Break Glass Unit (BGU). Designed for critical emergency egress, it features a deep back box that allows for both surface and flush mounting, offering significant installation flexibility. This unit is easily resettable using a supplied key after activation, and includes an adjustable sounder and bi-coloured LEDs to provide clear visual and audible status indications.
Technical Information of the CP3-LSRC-DB:
- Contact Configuration: Triple Pole
- Operation: Resettable
- Power Supply: 12/24Vdc
- Contacts Rating: 3A @ 125V
- Indicator: Dual-colour LED (Adjustable)
- Sounder Range: 65 to 85dB (Adjustable)
- Active Current: 75mA
- Standby Current: 41mA
- Mounting: Surface or Flush mount
- Size (excluding cover): 85mm (H) x 85mm (W) x 64mm (D)
Benefits:
- Installation Versatility: The deep back box significantly enhances mounting options, allowing for clean flush installations or simpler surface setups.
- Cost Efficiency: The resettable feature avoids ongoing costs and maintenance associated with replacing glass elements after each activation.
- Clear Safety Indicators: The combination of an adjustable audible sounder and dual-color LEDs provides immediate and unambiguous notification of activation.
- Enhanced Egress Safety: Offers a reliable and highly visible point for emergency exit, contributing to overall building safety protocols.
- Robust Electrical Control: Triple pole contacts offer broad compatibility for interfacing with various access control and alarm systems.
Ideal Applications:
- Emergency exit routes in commercial buildings, offices, and public facilities.
- Manual override for access control systems on critical doors.
- Integration into fire alarm systems for emergency release (always check local regulations).
- Any location where a clearly marked, reliable, and easily resettable emergency door release is required.
Specifications
| Colours | Green |
|---|---|
| connection-type | Terminal connection |
| Construction | Plastic |
| Contacts | 1-pole changeover (1 x SPDT), 2-pole changeover (2 x SPDT), 3-pole changeover (3 x SPDT) |
| Mounting | Surface mount |
| Power Requirement | 12-24 VDC |
| SKU | SR1-BGS-303-LSRC-42 |
