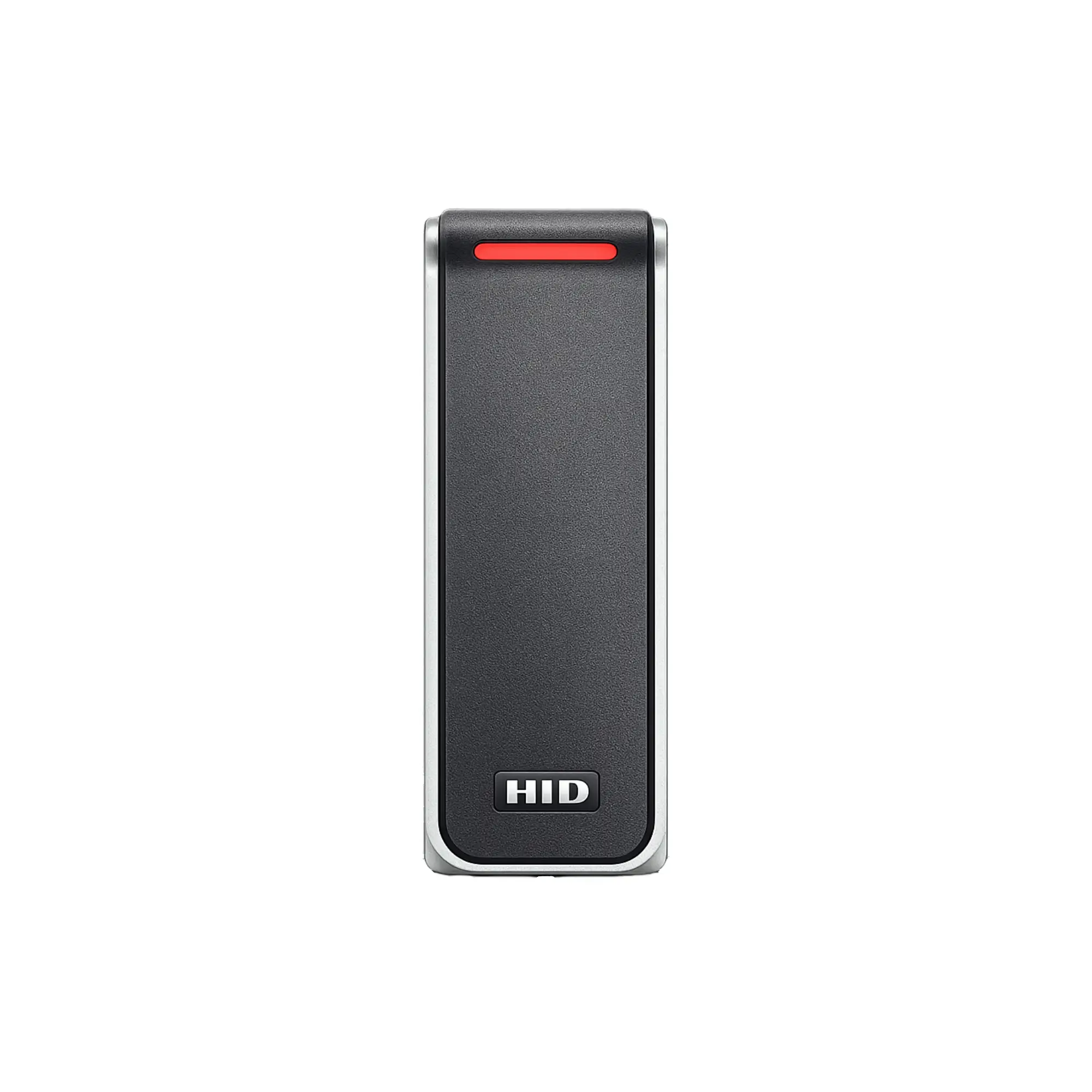

HID Signo 20 Mullion-Mount Access Control Reader
Excl VAT: £115.00 - £150.00
Price range: £138.00 through £180.00
inc. VATThe HID Signo 20 is a compact mullion-mount multi-technology access control reader designed for secure, flexible and space-saving door access. Supporting mobile credentials, 13.56 MHz smart cards, 125 kHz proximity credentials and OSDP, it is ideal for narrow door frames, commercial entrances and restricted-access areas.
Category:
HID ReadersFull Description
The HID Signo 20 is a compact mullion-mount access control reader from the HID Signo reader range, designed for secure installations where a slim, professional reader is required. Unlike the HID Signo 20K, this version does not include a keypad, making it a discreet choice for card, fob and mobile credential-based access control.
Built for flexibility, the HID Signo 20 supports a broad range of credential technologies, including HID Mobile Access via Bluetooth and NFC, 13.56 MHz smart credentials such as Seos®, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic and MIFARE DESFire EV1/EV2/EV3, as well as 125 kHz proximity credentials on supported profiles. The datasheet also confirms OSDP support for secure bidirectional communication, alongside Wiegand and Clock-and-Data connectivity.
The reader is suitable for mullion-mount door installations or flat surface mounting, making it well suited to narrow door frames and areas where a standard wall switch reader may be too wide. With IP65-rated indoor and outdoor performance, a robust polycarbonate housing and a wide operating temperature range, the HID Signo 20 is a dependable option for offices, education, healthcare, retail, residential and commercial access control projects.
Key Features Of The HID Signo 20:
- Compact mullion-mount multi-technology access control reader
- Non-keypad version of the HID Signo 20 reader
- Supports HID Mobile Access via Bluetooth and NFC
- Compatible with 13.56 MHz credential technologies including Seos®, iCLASS®, MIFARE Classic and MIFARE DESFire EV1/EV2/EV3
- 125 kHz proximity support on applicable profiles
- Native OSDP support for secure bidirectional communication
- Supports Wiegand, Clock-and-Data and RS-485 Half Duplex communication
- Designed for mullion-mount door installations and flat surface mounting
- IP65-rated for indoor and outdoor use
- Available in black or white with silver trim baseplate
- Terminal and pigtail connection options available
- Configurable via HID Reader Manager or OSDP
- EAL5+ certified secure element hardware
- Limited lifetime warranty
Available Variations
| SKU | Product Description |
|---|---|
| 20TKS-00-000000 | HID Signo 20 mullion-mount MultiTech reader, Standard Profile, terminal connection |
| 20NKS-00-000000 | HID Signo 20 mullion-mount MultiTech reader, Standard Profile, pigtail connection |
| 20TKS-01-00001H | HID Signo 20 mullion-mount reader, SEOS Profile, terminal connection |
| 20NKS-01-000000 | HID Signo 20 mullion-mount reader, SEOS Profile, pigtail connection |
| 20TKS-T2-000000 | HID Signo 20 mullion-mount reader, Priority Smart Profile, terminal connection |
| 20NKS-T2-000000 | HID Signo 20 mullion-mount reader, Priority Smart Profile, pigtail connection |
Benefits
- Space-saving installation – Slim mullion design is ideal for narrow door frames and restricted mounting areas.
- Flexible credential support – Suitable for mobile, smart card and proximity-based access control, depending on the selected profile.
- Improved security – Supports secure credential technologies, OSDP and EAL5+ certified secure element hardware.
- Upgrade-ready design – Helps organisations migrate from legacy proximity credentials to more secure smart and mobile access technologies.
- Simplified management – Can be configured and managed using HID Reader Manager or OSDP.
- Indoor and outdoor reliability – IP65 rating and durable construction make it suitable for a wide range of installations.
Technical Specifications
- Model: HID Signo 20
- Reader type: Mullion-mount access control reader
- Keypad: No
- Mounting: Mullion-mount door installations or flat surface mounting
- Mobile credential support: HID Mobile Access via Bluetooth and NFC
- 13.56 MHz credential compatibility: Seos®, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, FeliCa™ and CEPAS
- 125 kHz credential compatibility: HID Proximity®, Indala® Proximity, AWID Proximity and EM Proximity, depending on selected profile
- Typical read range: 1.6 to 4 inches / 4 to 10 cm
- Operating voltage: 12V DC
- Communications: Wiegand, Clock-and-Data and RS-485 Half Duplex
- OSDP support: Yes
- Panel connection: Pigtail or terminal strip, depending on model
- Dimensions: 45 mm x 121.5 mm x 19.5 mm
- Product weight: Pigtail 95 g / terminal 75 g
- Operating temperature: -40°C to +66°C
- Operating humidity: 0% to 95% non-condensing
- Storage temperature: -40°C to +85°C
- Environmental rating: UL294 outdoor and indoor rated, IP65
- Device management: HID Reader Manager / OSDP configuration
- Security rating: EAL5+ certified secure element hardware
- Housing material: Polycarbonate – UL94 V0
- Warranty: Limited lifetime
- See Full Data Sheet
Ideal Applications
- Office buildings
- Retail stores
- Educational institutions
- Healthcare facilities
- Residential properties
- Apartment blocks and managed buildings
- Manufacturing facilities
- Data centres and server rooms
- Restricted-access doors
- Narrow door frames requiring a mullion reader
FAQ
What is the HID Signo 20 used for?
The Signo 20 is used as a compact mullion-mount access control reader for doors, entrances and restricted-access areas. It is designed for card, fob and mobile credential-based access.
Does the HID Signo 20 have a keypad?
No. This product is the Signo 20 without keypad. For keypad entry, the HID Signo 20K would be the relevant version.
What is the difference between HID Signo 20 and HID Signo 40?
The Signo 20 is a narrow mullion-mount reader, while the HID Signo 40 is a wider wall switch-style reader. Both are part of the HID Signo range, but the Signo 20 is better suited to slim mounting areas.
Does the HID Signo 20 support mobile credentials?
Yes. The datasheet confirms support for HID Mobile Access using Bluetooth and NFC, including mobile credentials powered by Seos®.
Specifications
| Weight | 95 g |
|---|---|
| Brand | HID |
| Frequency | 125 kHz (RFID), 13.56 MHz, 2.45 GHz |
| Mounting | Mullion, Surface mount |
| connection-type | Bluetooth, Pigtail / cable connection, Terminal connection |
| Colours | Black |
| Annunciation | Sounder, Tri-Colour LED |
| Operating Temperature | -35°C to 66°C |
| Output Protocol | Clock & Data, OSDP, Wiegand |
| Construction | Polycarbonate |
| SKU | 20TKS-00-000000, 20NKS-00-000000, 20TKS-01-00001H, 20NKS-01-000000, 20TKS-T2-000000, 20NKS-T2-000000 |
