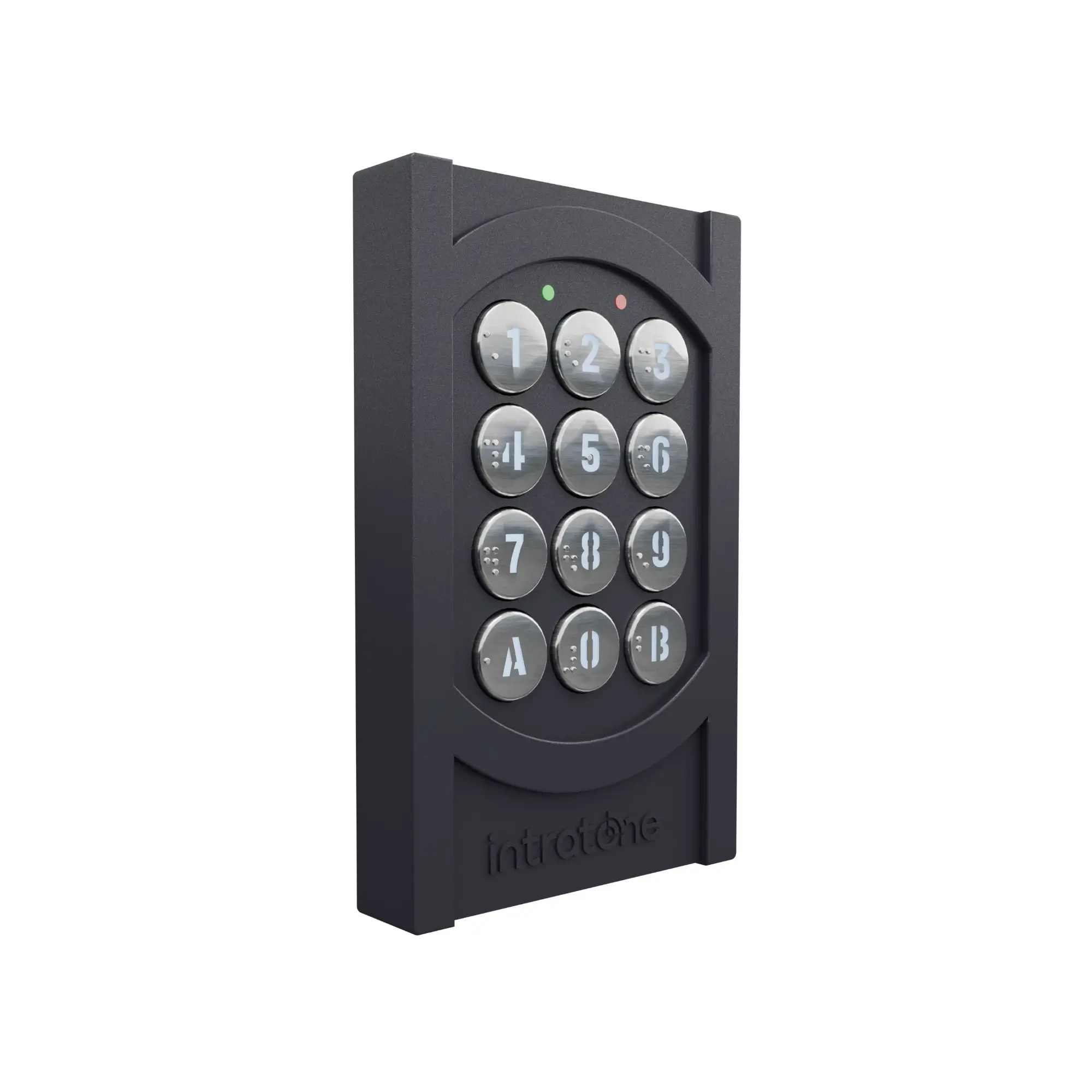

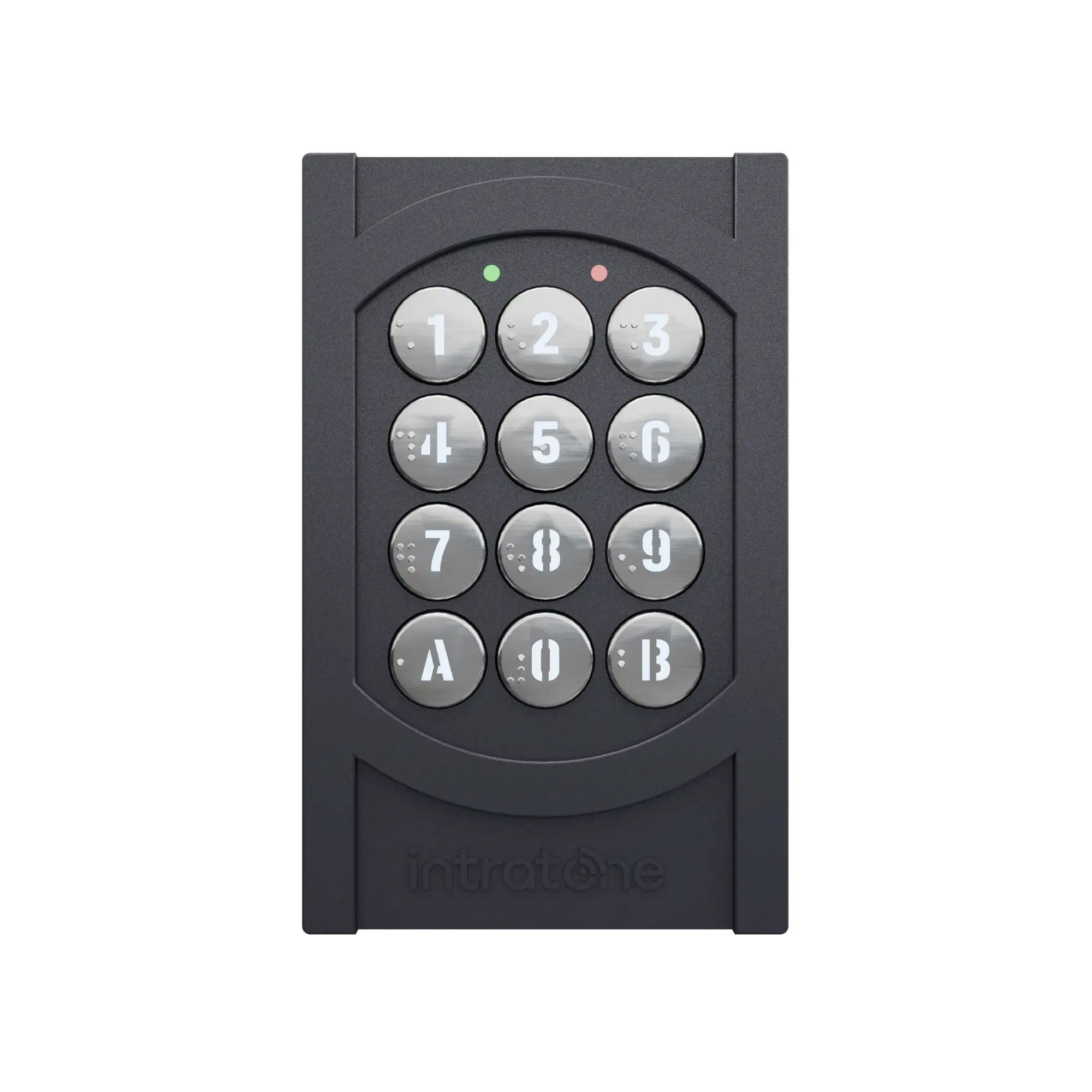

Intratone 04-0107 – Mini Coded Keypad for Secure Entry Access

The Intratone 04-0107 Mini Coded Keypad is a compact, durable, and user-friendly access control solution for both indoor and outdoor environments. Designed with a zamac finish and a backlit keypad, it offers enhanced durability and ease of use in low-light conditions.

When integrated with Intratone’s online management system via www.intratone.info, this keypad allows for real-time access management, enabling users to remotely update access codes and monitor entry events. It supports up to 80 programmable access codes and can be paired with a maximum of two keypads for dual-entry access points.

With free access time slots, this keypad provides flexibility for scheduled access, making it an excellent choice for multi-residential buildings, commercial premises, and secured facilities. Surface-mounted for easy installation, it operates on 12/24V DC and supports connections up to 200m with twisted pair wiring.

Key Features:

• Compact Mini Keypad – Space-saving design for efficient access control.
• Backlit Keypad – Ensures visibility in low-light conditions.
• Real-Time Management – Remotely control access via Intratone’s online platform.
• Supports up to 80 Codes – Ideal for multi-user access.
• Dual Keypad Support – Can be used with up to 2 keypads for entry points.
• Surface Mounted – Quick and easy installation.
• Indoor & Outdoor Use – Built for durability in all environments.
• Free Access Time Slots – Schedule predefined access periods.
• Zamac Finish – Strong, resistant to wear and tear.

Technical Specifications:

General Data:

• Model: Intratone 04-0107 Mini Coded Keypad
• Dimensions (W x H x D): 85 x 137 x 16mm
• Weight: 1kg
• Mounting: Surface-mounted
• Material: Zamac (durable metal alloy)

Electrical & Connection Details:

• Power Supply: 12/24V DC, 1A
• Wiring: 4 wires (2 twisted pairs)
• Maximum Cable Distance: 200m

Functionality & Performance:

• Maximum Programmable Codes: 80
• Maximum Keypads per Entry Point: 2
• Backlit Keypad: Yes
• Real-Time Management: Yes (requires Intratone GPRS data module)
• Free Access Time Slots: Yes

Environmental Specifications:

• Operating Temperature: -20°C to 70°C
• Indoor/Outdoor Use: Yes

What’s in the Box?

• 1 x Intratone 04-0107 Mini Coded Keypad
• Installation Guide
