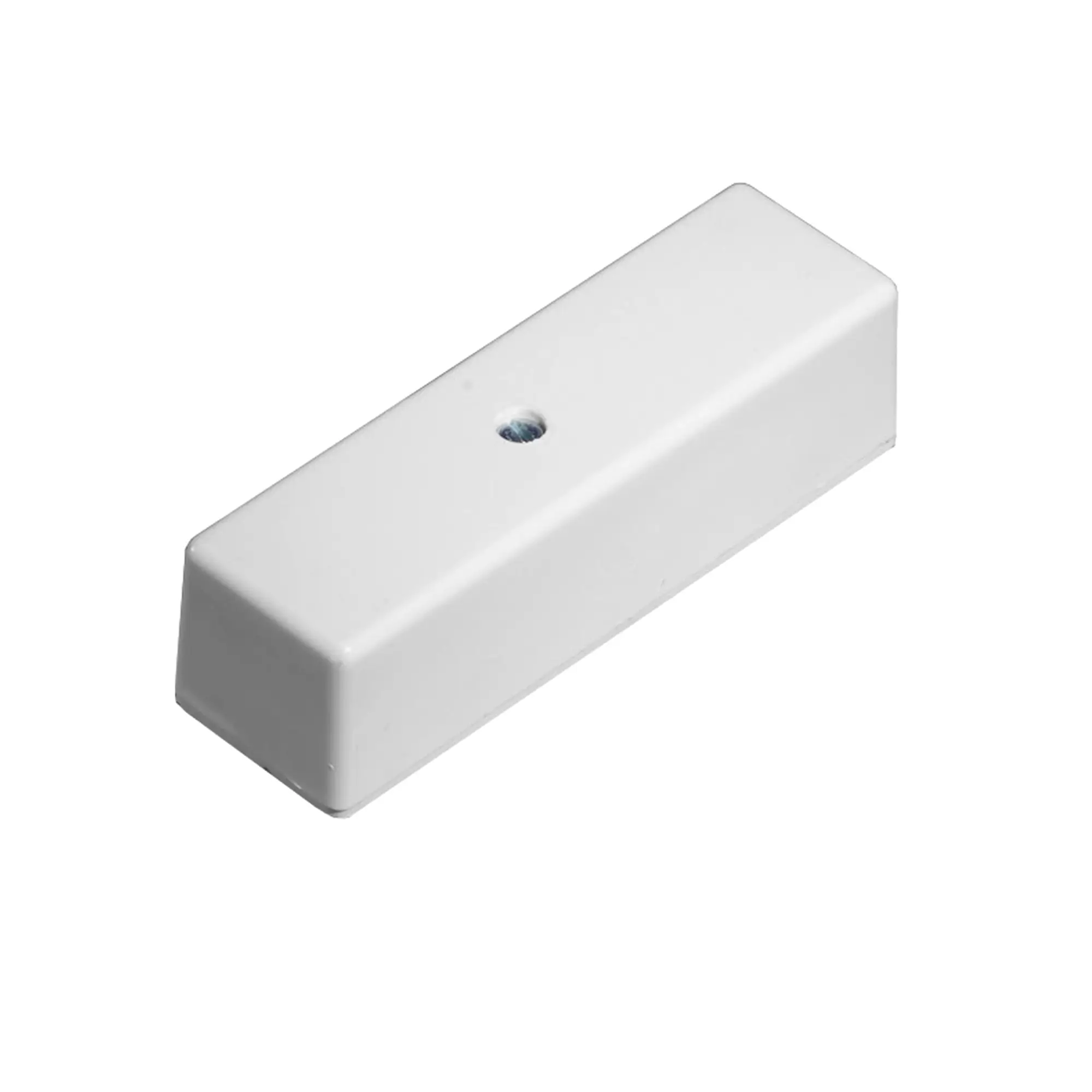

Knight Fire & Security J40 7-Way Junction Box (Grade 2)

Grade 2 7-Way Junction Box by Knight Fire & Security

The Knight Fire & Security J40 7-Way Junction Box is a high-quality, Grade 2 connection box designed for secure and organised wiring installations. Its durable HIPS (High Impact Polystyrene) construction ensures long-lasting reliability in both residential and commercial security systems.

With 5+2 terminals, the J40 & J40B provides versatile connectivity options, making it ideal for alarm installations, access control systems, and other security applications. The built-in leaf tamper switch enhances security by detecting unauthorised access or removal.

Designed for ease of installation, the 7-Way Junction Box features two end knock-outs and two back holes, allowing for flexible cable entry. It operates efficiently in harsh environments, with a temperature range from -40°C to +50°C, making it suitable for various indoor and outdoor applications.

Key Features & Benefits:

• Grade 2 Certified – Ensures compliance with security standards.
• 7-Way Terminal Design (5+2 Terminals) – Provides flexibility for various wiring configurations.
• Built-in Leaf Tamper Switch – Detects tampering or unauthorised removal.
• Durable HIPS Construction – Impact-resistant and built to last.
• Flexible Installation – Two end knock-outs and two back holes for easy wiring access.
• Extreme Temperature Resistance – Operates from -40°C to +50°C, ensuring reliability in harsh conditions.

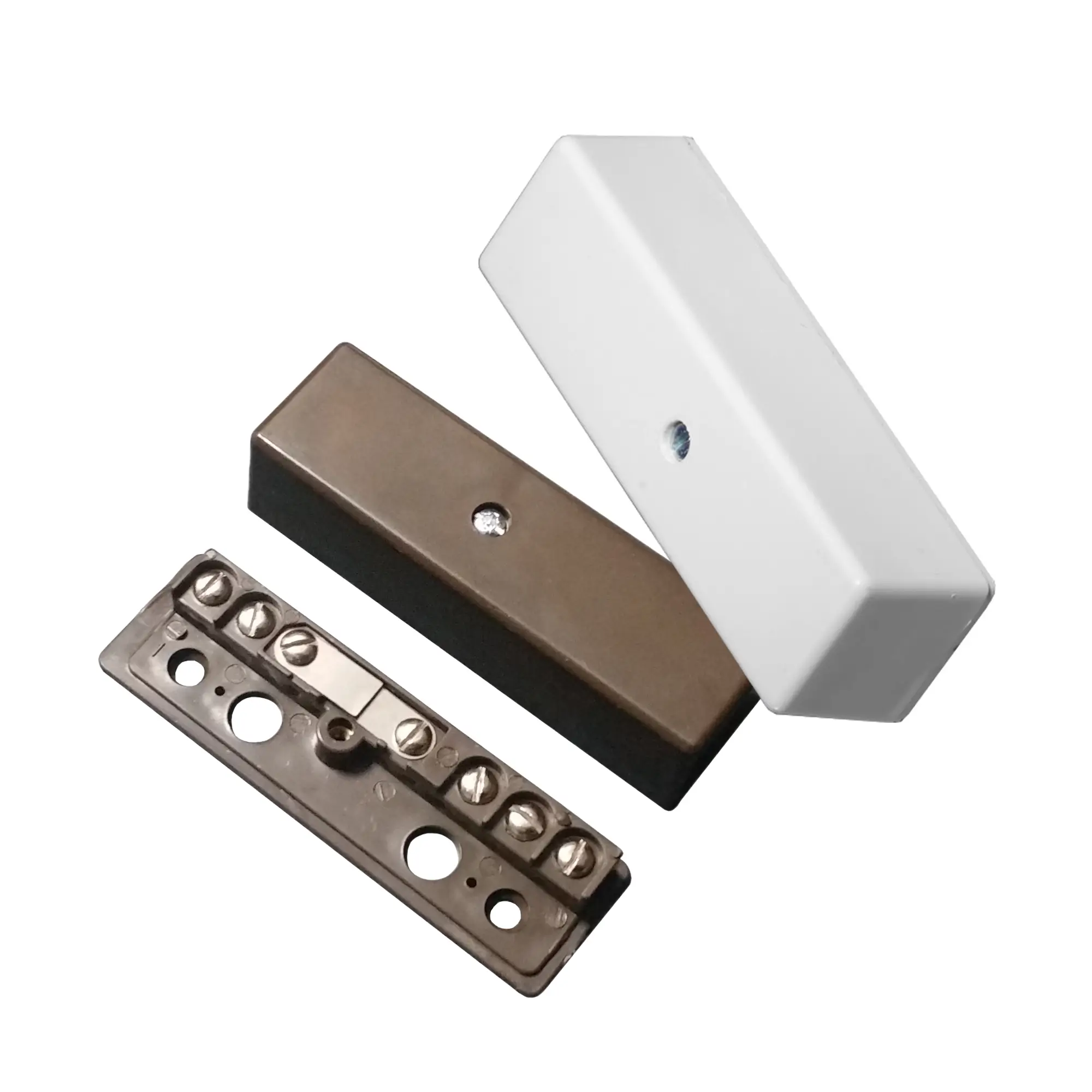

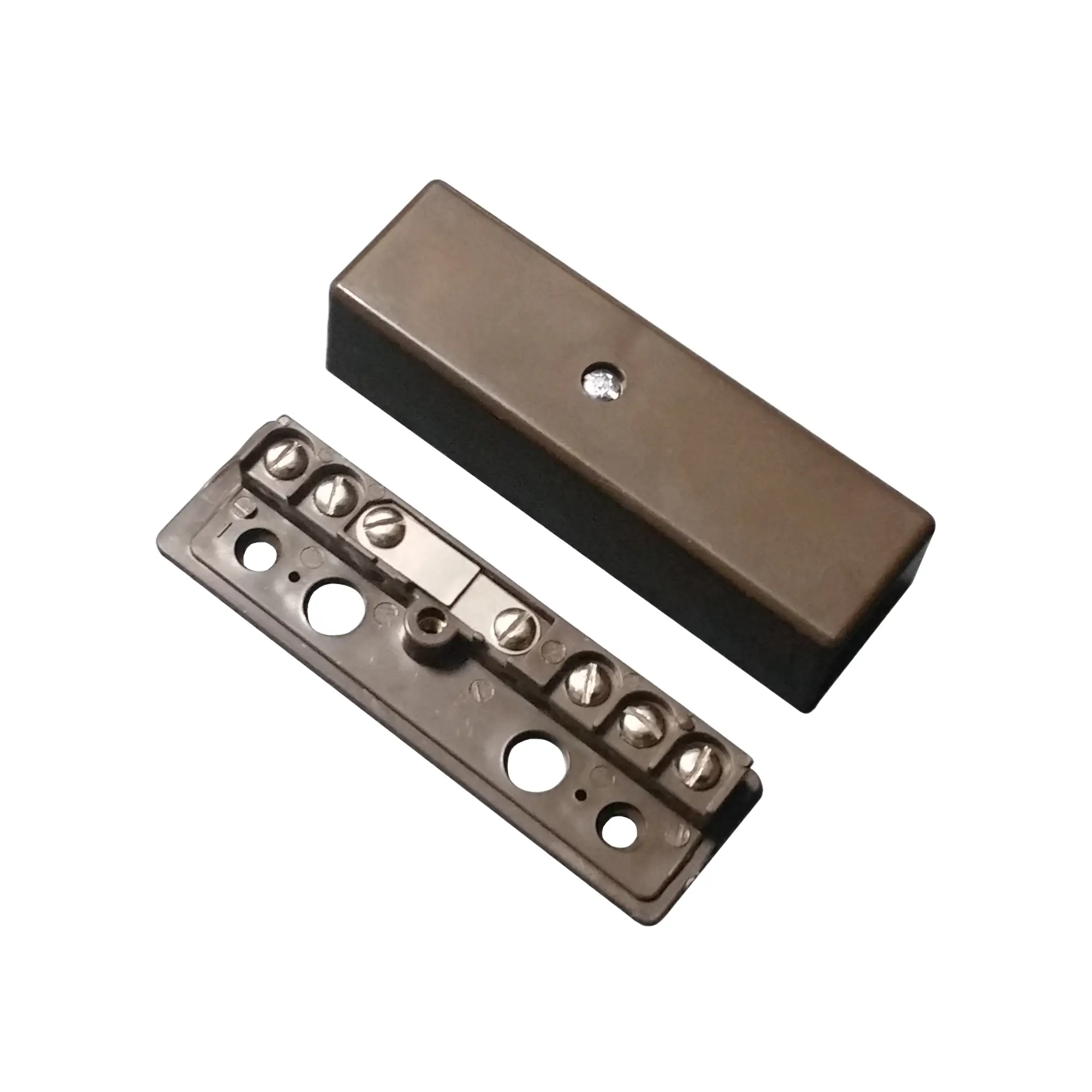

• Available in Two Colours – White (J40) and Brown (J40B) to match different installation environments.

Technical Specifications:

• Grade: 2
• Environmental Class: 2
• Material: High Impact Polystyrene (HIPS)
• Tamper Protection: Leaf tamper switch
• Terminal Configuration: 5+2
• Size: 78mm x 24mm x 22mm
• Access Points: 2 end knock-outs, 2 back holes
• Operating Temperature: -40°C to +50°C
• Colour Options: White (J40) / Brown (J40B)

Why Choose the J40 7-Way Junction Box?

The Knight Fire & Security J40/B 7-Way Junction Box is an essential component for security professionals and installers, providing a secure, organised, and tamper-resistant wiring solution. Its robust design, multiple access points, and leaf tamper switch make it a versatile and reliable choice for alarm systems, access control, and other security applications.
