RGL WP66-G Series – Weatherproof Exit Buttons with Choice of Legend
Excl VAT: £35.06
£42.07
inc. VATThe RGL WP66-G Series is a robust weatherproof exit button, ideal for both internal and external access control applications. Featuring a large green dome button and an IP66-rated housing, it ensures reliable operation in harsh conditions. With a choice of wear-resistant legends – including “Push To Open”, “Press To Exit”, “Gate Release”, and “Door Release” – it offers flexibility for various use cases. Engineered with silver contacts and a high-impact polymer housing, the WP66-G Series is a dependable solution for professional installers seeking long-lasting performance in commercial or sensitive environments.
Key Features
- Fully IP66-rated enclosure and button
- Large green momentary pushbutton for clear visibility
- Choice of wear-resistant legends (4 included options)
- Double pole N/O – N/C contacts
- Surface fitting with robust back box
- Ideal for outdoor gates, commercial doors, and general access control
Category:
Plastic Exit ButtonsFull Description
Weatherproof REX Buttons with Choice of Label
The RGL WP66-G Series of exterior REX buttons are a premium, IP66 rated exit button that combines rugged durability, versatile electrical contacts, and customisable labelling, to provide a highly reliable and user-friendly solution for all your outdoor access control and emergency egress needs.
Technical Specifications
Electrical & Mechanical:
- Contacts: Double pole N/O - N/C
- Output: 4 AMP @ 30V AC/DC
- Contact resistance: ≤10mΩ
- Operating life (mechanical): 1,000,000 cycles
- Operating travel: 2mm
- Silver-plated contact elements
- Operating temperature: -20°C to +60°C
Physical:
- Dimensions: 85mm (H) x 90mm (W) x 60/80mm (D)
- Weight: 248g (boxed), 200g (unboxed)
- Housing: Two-part, cross-polymer construction
- Finish: High-impact plastic, easy to clean
- Fitting: Surface mount with M16/20 conduit knockouts
Ingress Protection:
-
IP Rating: IP66 (button and enclosure)
Included in Box:
- Green Dome Exit Button
- 4 Screws
- Surface Enclosure
RGL WP66-G Series - Choice of Legend:

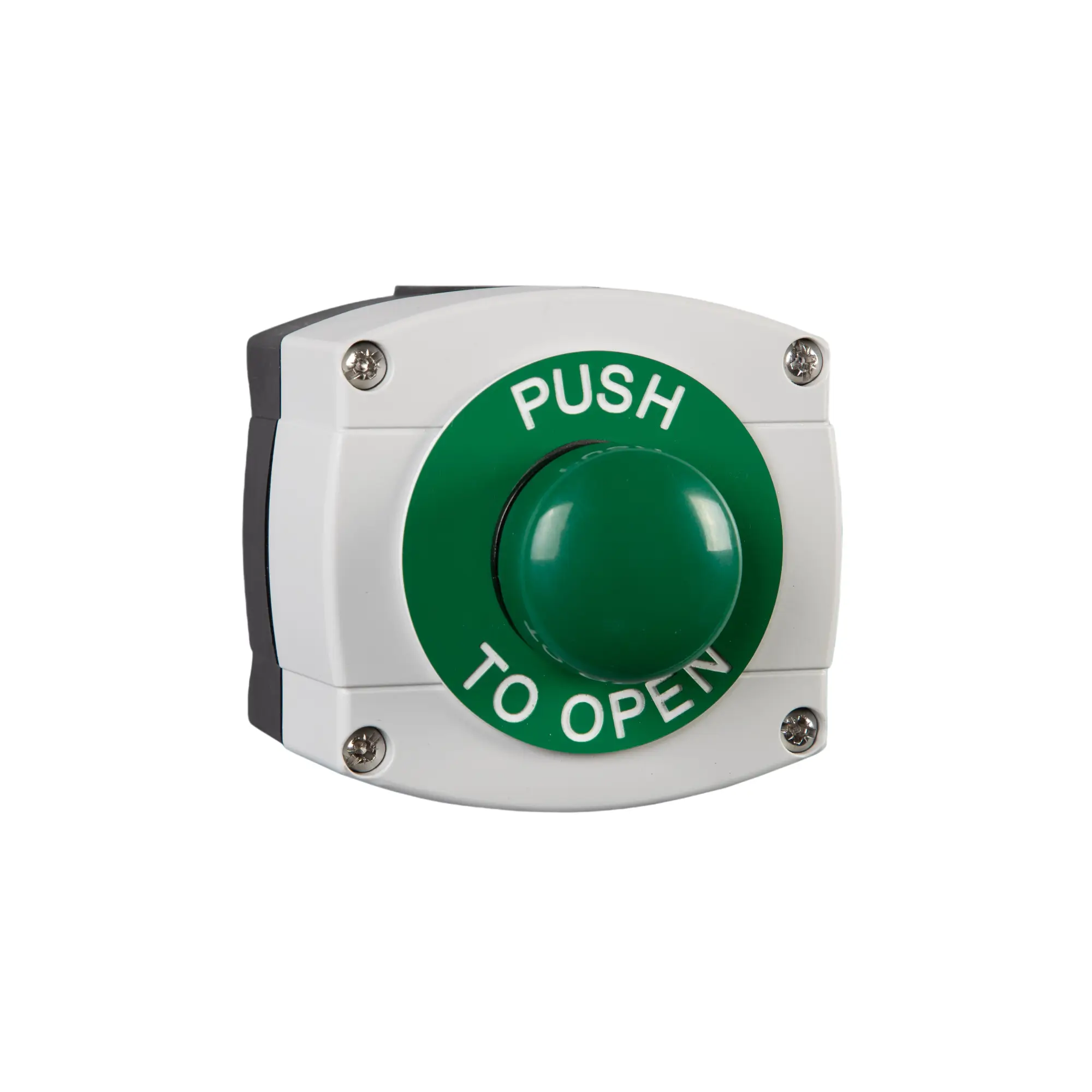

- RGL WP66-G-GB/PTO - "Push To Open"

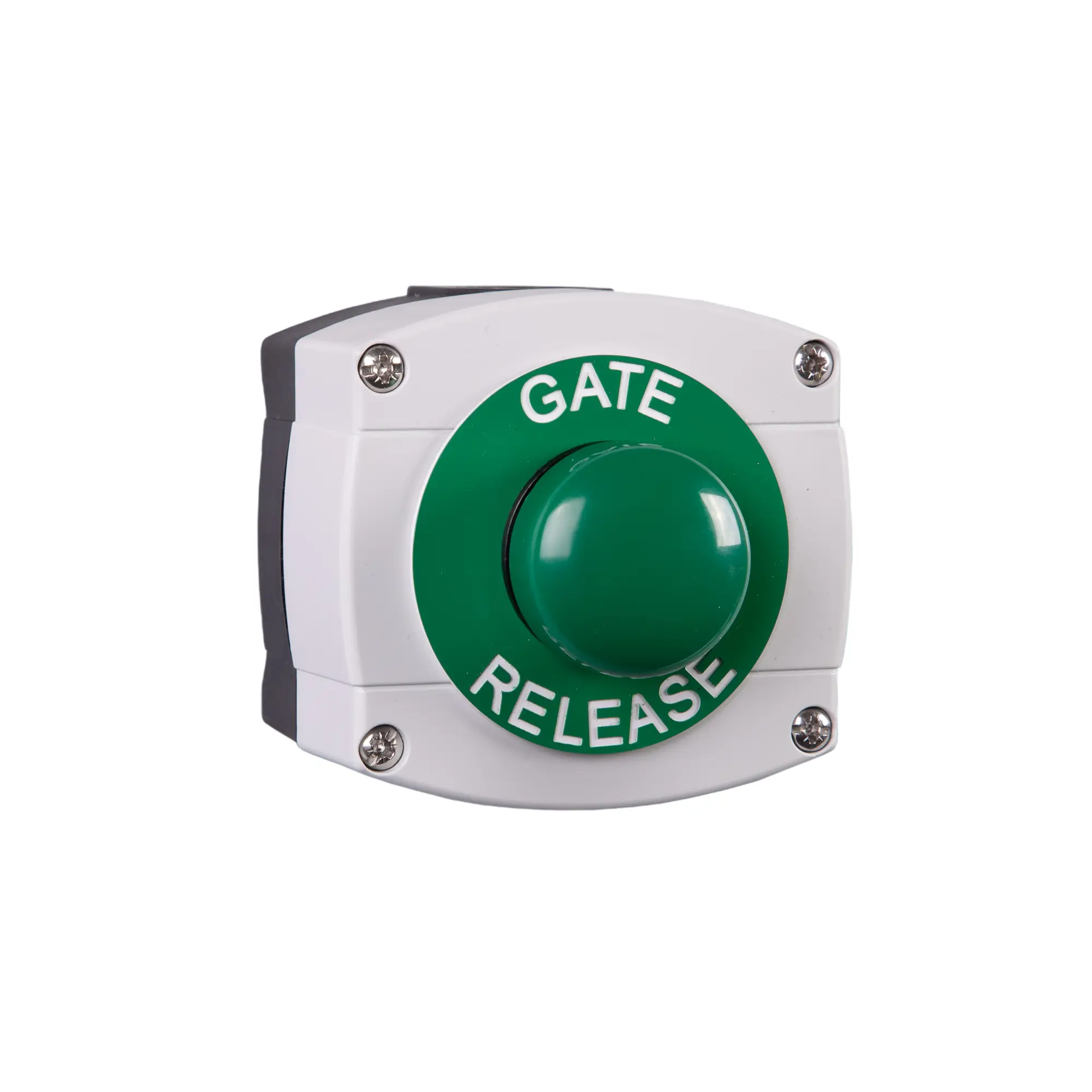

- RGL WP66-G-GB/GR - "Gate Release"

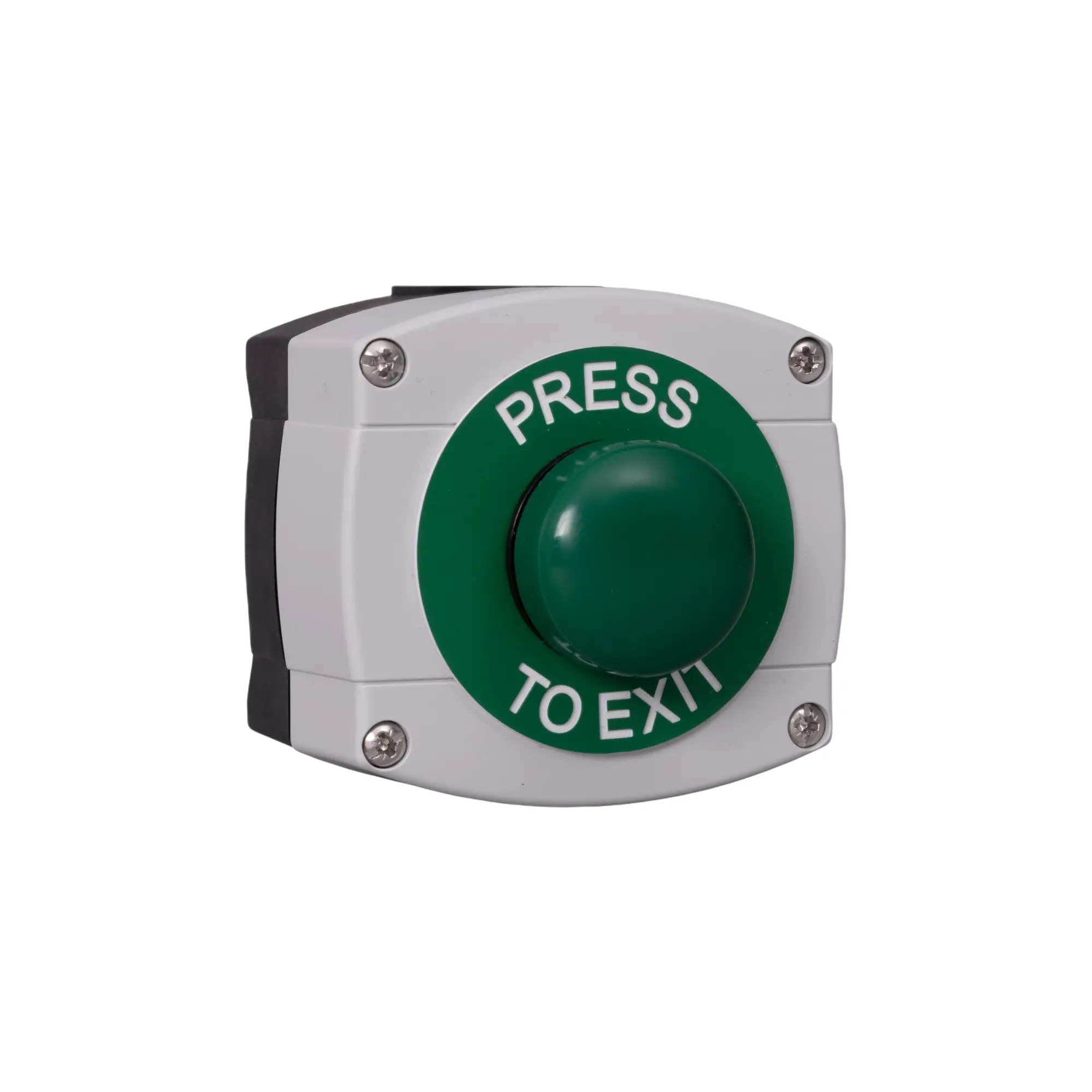

- RGL WP66-G-GB/PTE - "Press To Exit"

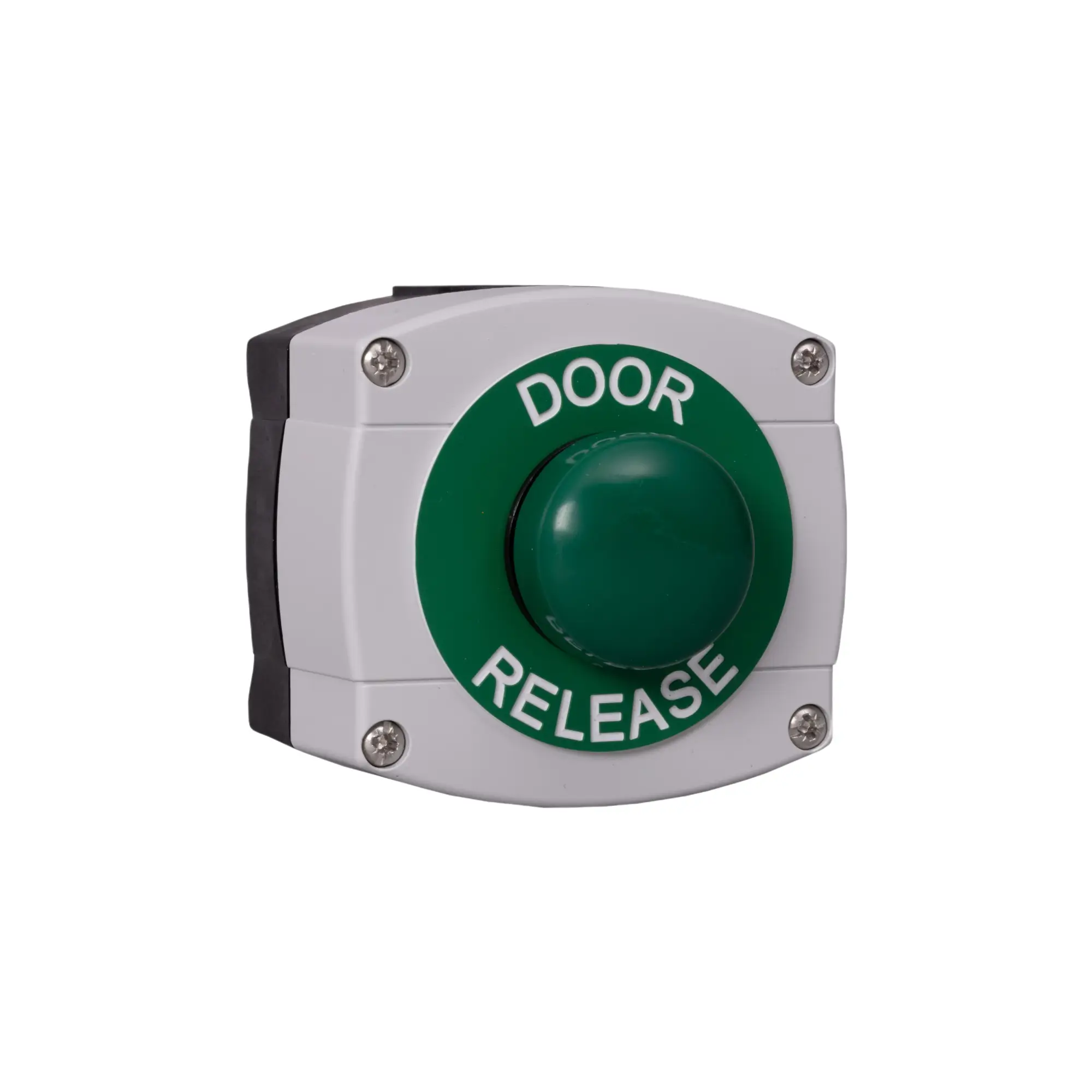

- RGL WP66-G-GB/DR - "Door Release"
Specifications
| Weight | 248 g |
|---|---|
| Brand | RGL |
| Legend | DOOR RELEASE, PRESS TO EXIT, PUSH TO OPEN, Gate Release |
| Protection Rating | IP66 |
| Contacts | 2-pole contact |
| Construction | Polymer |
| Mounting | Surface mount |
| Operating Temperature | -20°C to 60°C |
| SKU | RGL-WP66-G-GB/DR, RGL-WP66-G-GB/PTE, RGL-WP66-G-GB/GR, RGL-WP66-G-GB/PTO |
