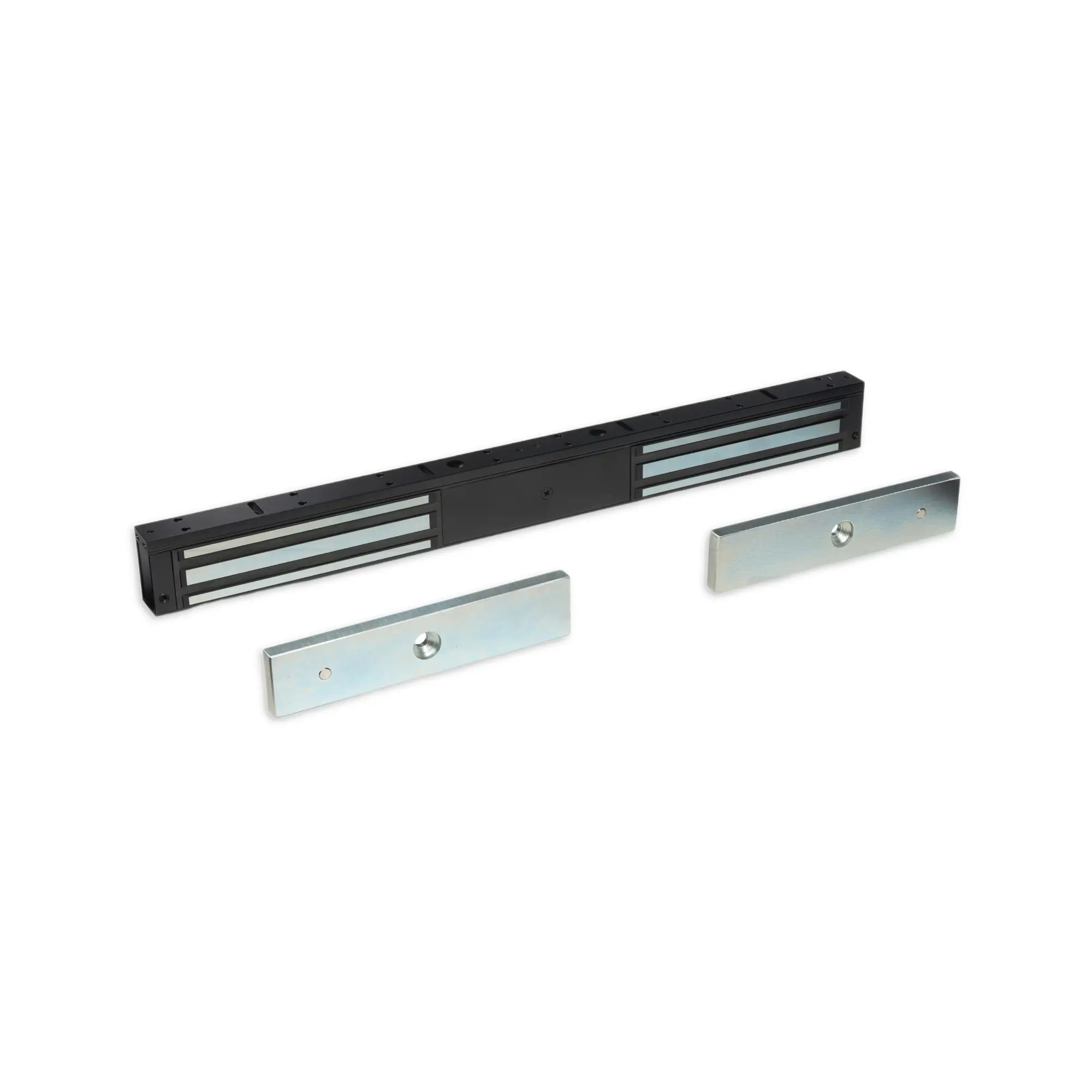

STEALTH04 & STEALTH04DS: Monitored Dual Mag Lock with Door Status Options

The STEALTH04 series provides a high-quality, stealth-black mini-maglock solution, with the STEALTH04DS offering the added advantage of door position monitoring for a more comprehensive access control system.

Key Features (Common to both STEALTH04 and STEALTH04DS):

• 600lb (275kg) Holding Force: Provides a strong and reliable locking mechanism for double doors.
• Slim & Compact Design: The sleek profile and lightweight design (approx. 4kg) make the maglock discreet and suitable for most indoor installations.
• Stealth Black Finish: Features a modern, discreet black finish that complements contemporary door designs and architectural aesthetics.
• Dual Voltage (Selectable): Operates on both 12Vdc (500mA) and 24Vdc (250mA), offering flexible compatibility with various power supplies.
• Fire Rated: Certified for use on fire-rated doors, ensuring compliance with critical safety standards.
• Advanced Protection:
  • MOV (Metal Oxide Varistor): Provides spike and surge protection for the internal electronics, ensuring durability.
  • Fail-Safe Operation: The lock is designed to release upon power loss, which is a crucial safety feature for emergency egress.
  • Anti-Residual Magnetism: Prevents lingering magnetic force, ensuring smooth and immediate door release.
• Comprehensive Kit: Includes the top-plate, armature-plates, and all necessary fixings for a complete and straightforward surface-mount installation.

Additional Features of STEALTH04DS:

• Door Status Monitoring: The STEALTH04DS model includes an integrated reed switch door contact for each door leaf. This provides a separate set of contacts to monitor the physical position of the door (open or closed), offering an extra layer of system feedback.
