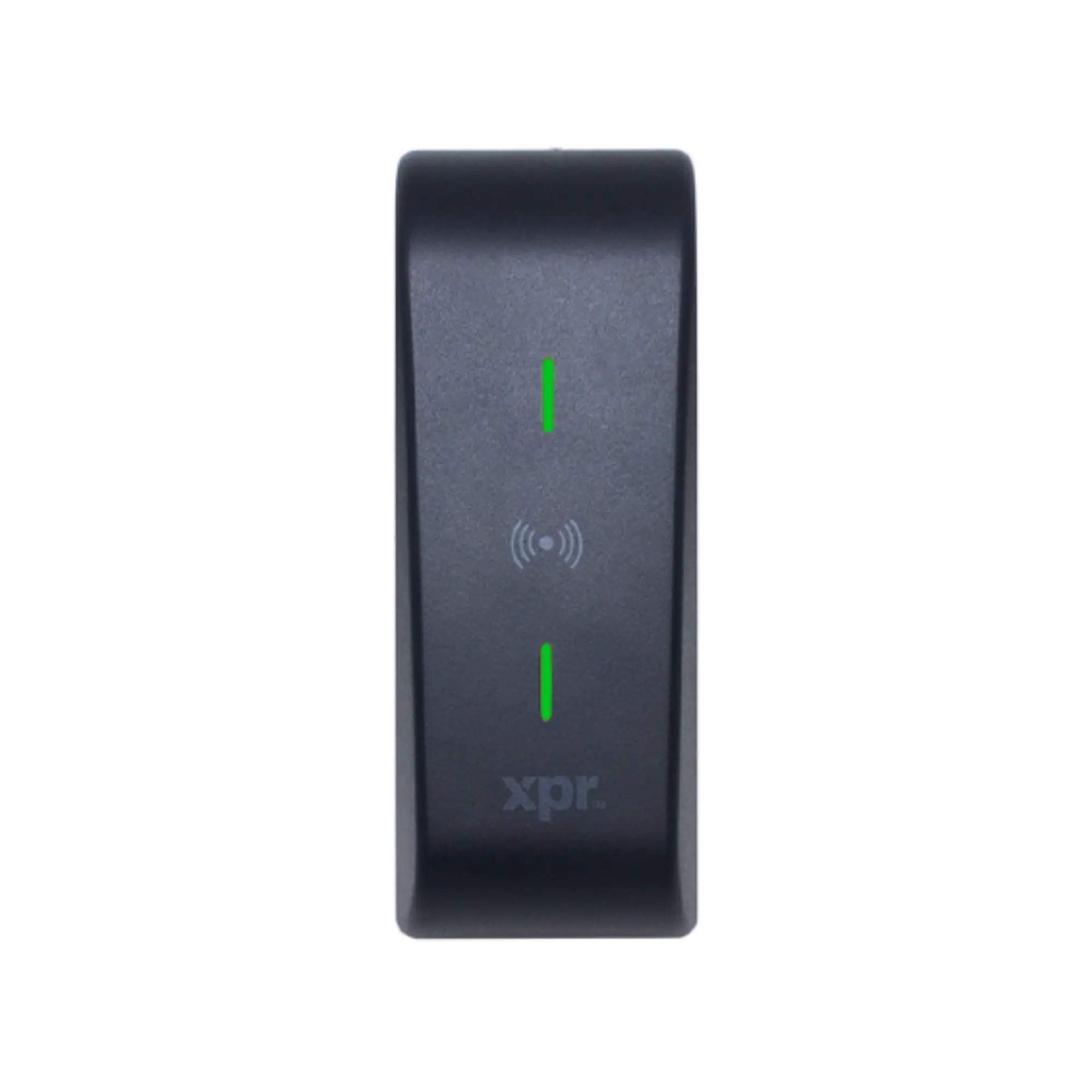

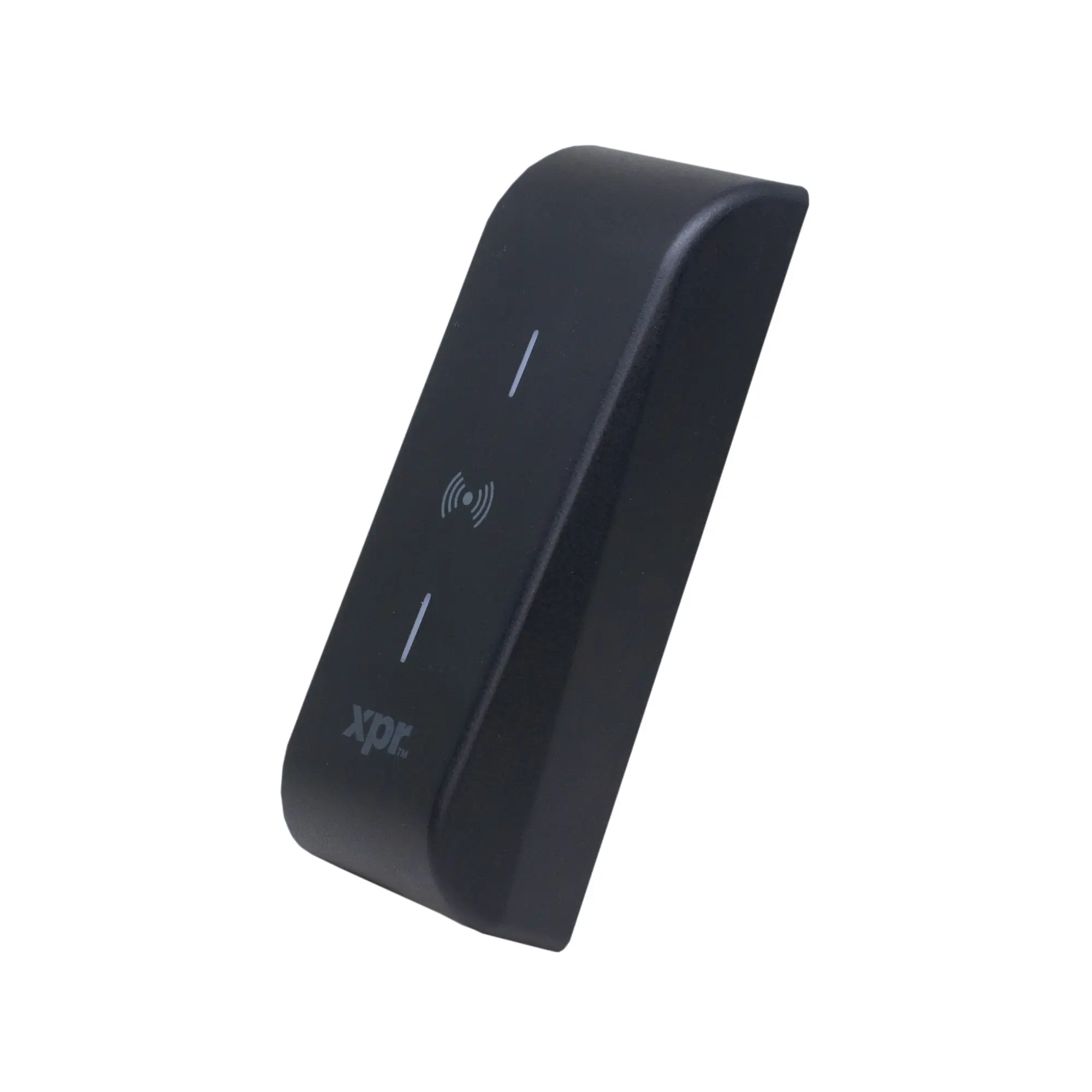

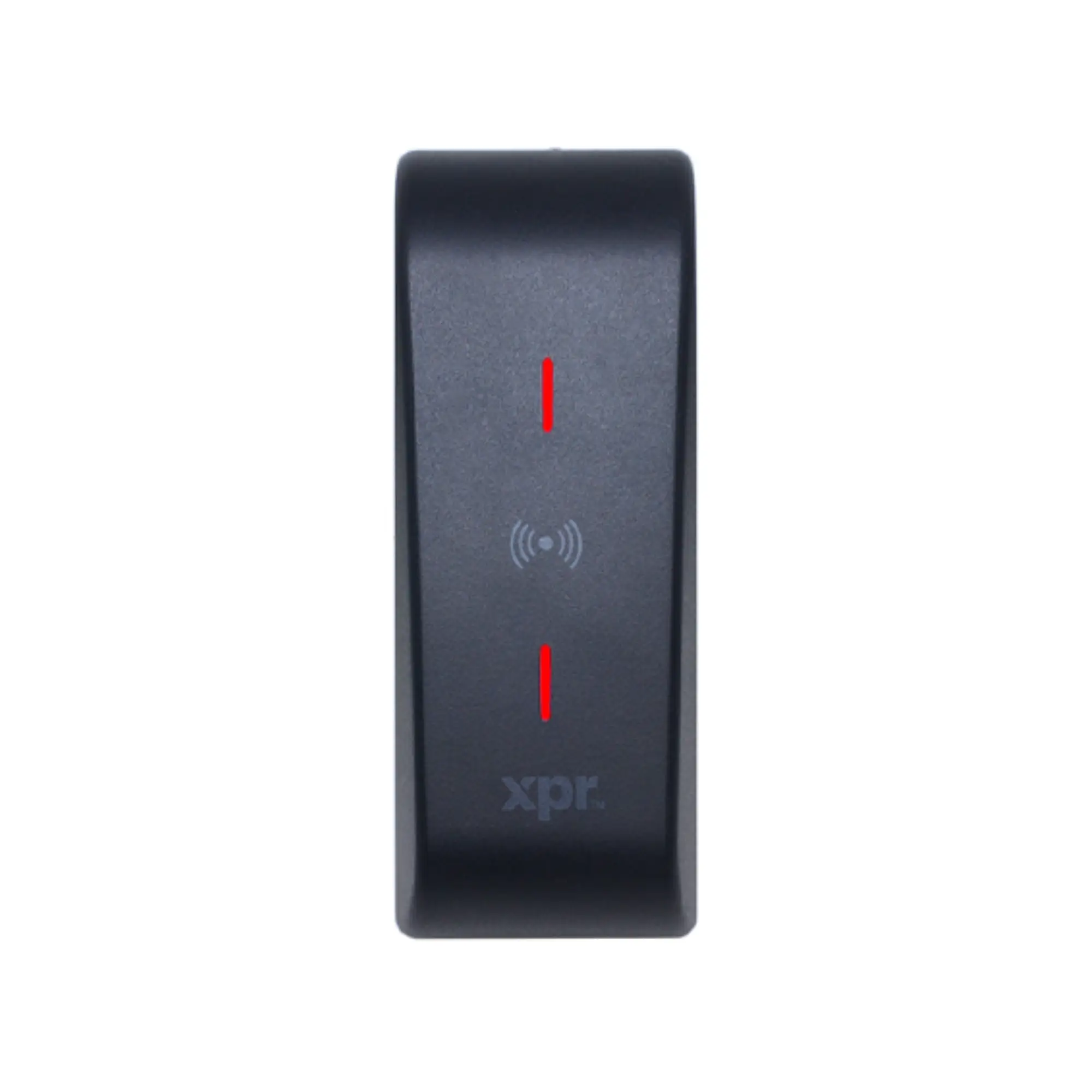

XPR XPM-MF-X XPRO Series: Mullion Mifare DESFire Reader with Optional Xsecure
Excl VAT: £89.00
£106.80
inc. VATThe XPR XPM-MF-X is a high-security, multi-technology RFID reader housed in a slim, mullion-style design. This forms part of the XPRO Series and offer maximum compatibility, supporting Wiegand, OSDP, and RS-485 protocols. With robust construction and advanced Mifare DESFire credential support, this series is engineered for high-security, all-weather installations where customisable features and next-level encryption are paramount.
Technical Information:
- Mounting: Surface-mounted
- Housing: Polycarbonate copolymer (UL94)
- Internal buzzer: Volume adjustable via software
- Protocol: Wiegand, OSDP
- Read range: Up to 9 cm (depending on card type and size)
- Operating frequency: 13.56 MHz
- Tamper protection: Yes
- Wiring: Terminal block (standard)
- Operating voltage: 9 – 15 V DC
- Max. current consumption at 12 V DC: 100 mA
- Supported credentials: Xsecure, Mifare CSN (Classic, DESFire, Plus, Ultralight), Mifare DESFire (EV1, EV2, EV3)
Category:
XPR ReadersFull Description
The XPM Mullion Reader: Multi-Technology Access Control with Optional Xsecure Encryption
The XPR XPM-MF-X is part of the XPRO Series of highly versatile readers designed for modern access control systems. This multi-technology reader can seamlessly read a wide array of 13.56 MHz credentials, including Mifare CSN and DESFire and is compatible with nearly all access controllers on the market, supporting Wiegand, OSDP, and RS485 protocols. With added support for Xsecure encrypted credentials, offering protection against cloning and spoofing.
Key Features of the XPR XPM-MF-X:
- Slim Mullion Design: Compact dimensions (42mm width) and surface mount design of the XPR XPM-MF-X, make it ideal for installation on door frames, mullions, or any narrow surface.
- Multi-Technology Reading: Supports a comprehensive range of 13.56 MHz credentials, including MIFARE CSN (Classic, DESFire, Plus, Ultralight) and ISO 15693. The -X model provides advanced security by reading Xsecure credentials, which are based on MIFARE DESFire EV3 and use a unique, irreversible diversification process to encrypt and seal card data against spoofing.
- Multiple Communication Protocols: Offers flexibility by communicating using Wiegand, RS485, and OSDP, ensuring compatibility with diverse host controllers.
- Easy Configuration & Updates: Features a USB-C input on the back for quick configuration, firmware updates, and selection of communication modes and identifiers using the XPR Product Manager software. Programming can also be done via a programming card.
- Robust Environmental Rating: The reader is resin potted and boasts an IP65 environmental rating (Indoor/Outdoor) and a high IK11 impact protection rating, ensuring durability in extreme conditions.
- Wide Operating Range: Designed to operate in harsh environments, with an operating temperature range of -35°C to +70°C.
- Adjustable Internal Buzzer: Features an internal buzzer whose intensity can be adjusted or removed using the software.
- Tamper Protection: Includes tamper protection for enhanced physical security.
XPR XPM-MF-X Technical Information:
- Mounting: Surface mount
- Housing: Polycarbonate copolymer (UL94)
- Dimensions (H x W): 113mm x 42mm
- Communication: Wiegand, RS-485, OSDP
- Operating Frequency: 13.56 MHz
- Reading Range: Up to 9 cm (depending on tag)
- Operating Voltage: 9 - 15 V DC
- Max. Consumption @ 12 V DC: 100 mA
- Environmental Rating: IP65
- Impact Protection: IK11
- Operating Temperature: -35°C to +70°C
- Supported Credentials: Mifare CSN, NTAG CSN, ISO 15693 (Xsecure on -X model)
- See Full Data Sheet
Benefits of XPR's XPRO Series:
- High Security: The XPM-MF-X model offers cutting-edge anti-cloning security using Xsecure MIFARE DESFire EV3 technology.
- Maximum Compatibility: Supports key communication protocols (Wiegand, OSDP, RS485) and a wide range of credentials, ensuring seamless integration.
- Future-Proof & Flexible: On-the-fly configuration and firmware updates via USB-C or card provide high flexibility and scalable functionality for future needs.
- Extreme Durability: IP65 and IK11 ratings allow for reliable deployment in harsh outdoor environments and high-traffic areas.
- Aesthetic & Discreet: The slim, black mullion design is unobtrusive and fits perfectly in modern architectural settings.
Ideal Applications:
- the XPR XPM-MF-X is ideal for Door frames and narrow surfaces in commercial buildings and data centres.
- High-security installations requiring DESFire or Xsecure encrypted credentials to prevent card cloning.
- Outdoor gates and entry points due to its IP65/IK11 rating and wide temperature range.
- Any professional environment demanding a sleek, multi-technology reader with flexible communication and high security.
Specifications
| Brand | XPR |
|---|---|
| Device Type | Reader |
| Reader and Card Technology | Mifare / Desfire CSN Only, Xsecure |
| Operating Temperature | -30°C to 70°C |
| Power Requirement | 10-15 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz |
| Mounting | Surface mount |
| Protection Rating | IP65, IK11 |
| Series | Xpro |
| SKU | XPR-XPM-MF-X |
