AES OPYN – GSM and IP Video Intercom with Keypad: Advanced Remote Access

AES OPYN: Next-Generation IP/4G Video Intercom with Smart Keypad and Remote Features

The AES OPYN series presents a cutting-edge video intercom system, available in both IP/Networked (OPYN-IP-IBK) and 4G Wireless GSM (OPYN-4G-IBK) variants, complete with an integrated keypad. Designed to provide seamless remote communication and access control, the OPYN allows you to interact with visitors, grant access, and monitor your property from anywhere in the world via its intuitive smartphone app.

AES OPYN Available Models:

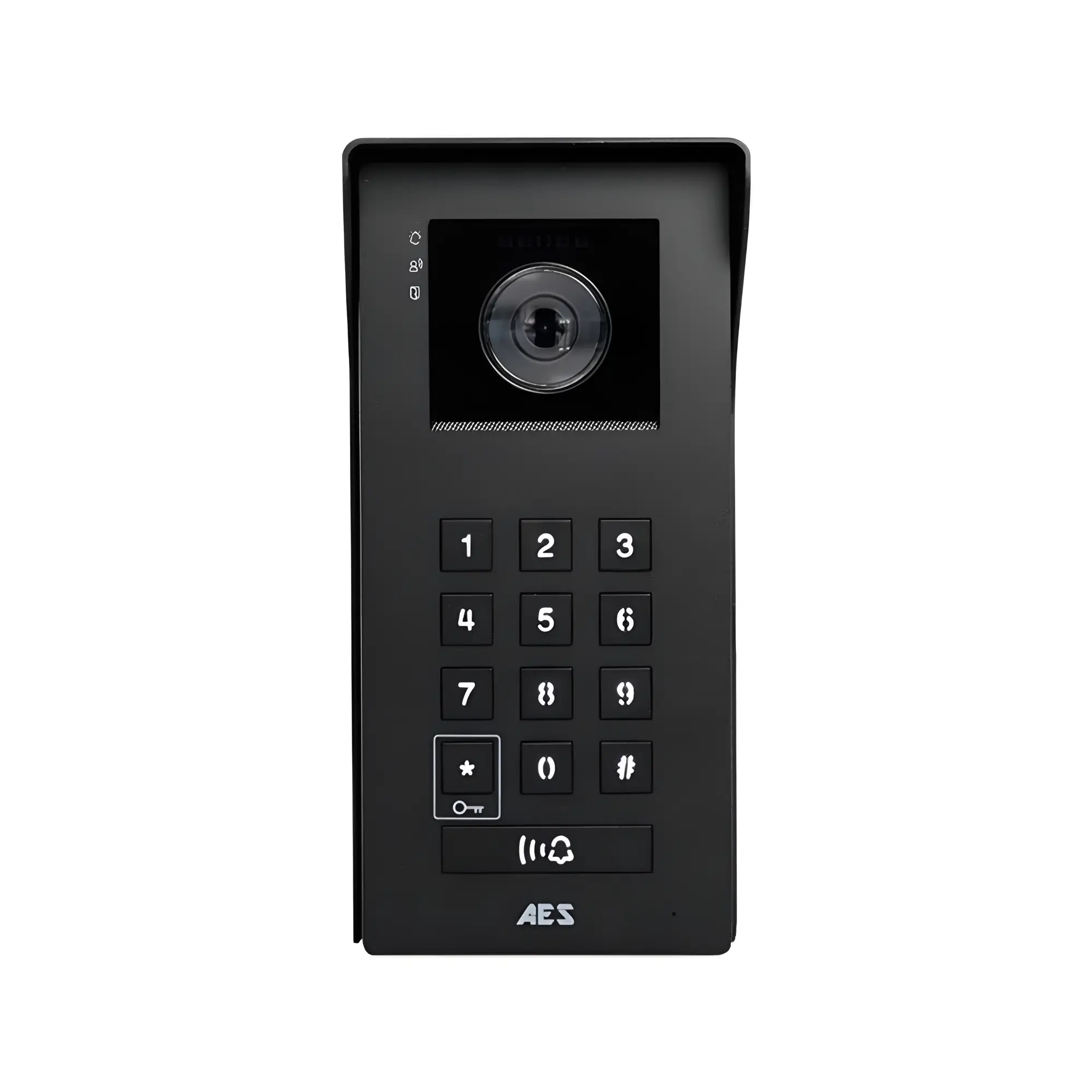

• OPYN-IP-IBK (IP / Networked Video Intercom): Ideal for installations with existing wired network infrastructure. Includes a hooded black powder-coated video intercom with white light illumination and a power supply.

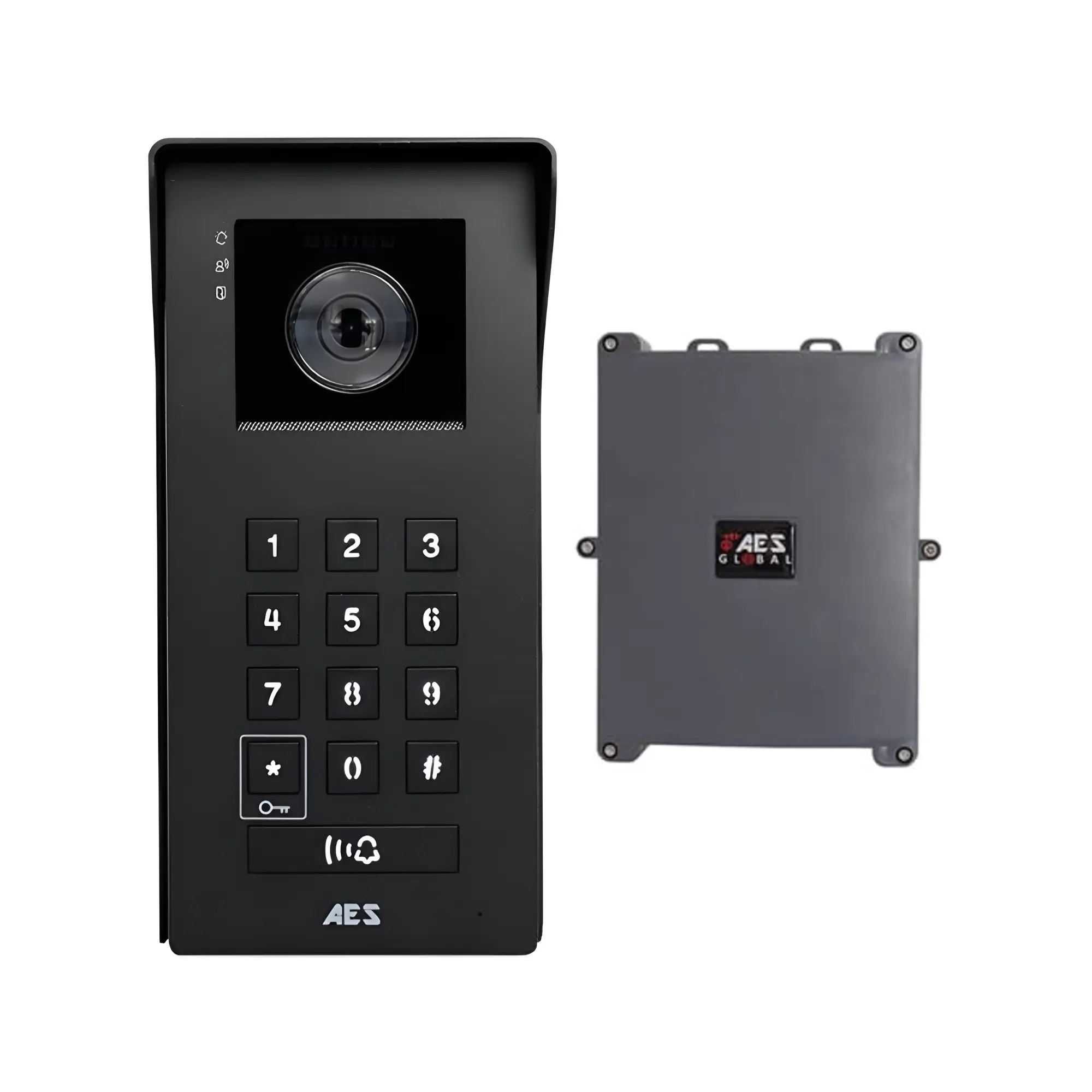

• OPYN-4G-IBK (4G Wireless GSM Video Intercom): Perfect for locations without a reliable wired internet connection. Includes a hooded black powder-coated video intercom with white light illumination, a 4G modem, SIM card options, and a power supply. (For a more reliable connection, a wired or 4G connection is recommended).

Key Features Of The AES Opyn:

• Remote Communication: Speak and view visitors from anywhere via the AES OPYN app.
• Remote Access Granting: Send commands via the app to open gates, doors, etc.
• Keypad with 150 Codes: Offers permanent, time-restricted, and temporary codes for flexible access management.
• Smartphone Integration:

  • Automatic opening times settable via the app.
  • Motion detection alerts with footage playback from an online server.
  • Image/video download capabilities.
  • Multiple devices can connect to the same account (unlimited APP users).
  • View live camera feed via the app.
  • Scan QR code unlock feature.
• Voicemail Functionality: Visitors can leave video messages when calls are unanswered (SD card required). Customise up to three voicemail messages.
• Night Vision: Colour camera with IR cut filter ensures clear visibility in low light.
• LED Luminance: White light illumination for enhanced night-time visibility.
• Voice Control Integration: Compatible with Alexa and Google Assistant.
• Dual Relays: Two N/C and N/O relays for controlling multiple access points (e.g., gate and pedestrian door).
• Activity Log: Stores up to 100 events for monitoring access history.
• Tamper Alarm: Provides an alert if the unit is tampered with.
• Durable Design: Hooded imperial video intercom in black powder-coated finish.

Technical Specifications:

• Power Supply: 24V DC (24V DC 2A adaptor included)
• Relay Type: N/C (Normally Closed) and N/O (Normally Open)
• Relay Load: 3 amps, 24V AC max
• Power Consumption: 300mA on dial out, 2Amp peak demand
• Keypad Codes: 150 (Permanent, Time Restricted, Temporary)
• Event Log Display: 100 entries
• Unique APP Users: Unlimited
• Relays: 2
• Connectivity: IP/LAN cable, 4G Access Point via SIM card, or Wi-Fi.
• See Data Sheet.

Benefits:

• Ultimate Convenience: Manage your property's access from anywhere in the world.
• Enhanced Security: Video monitoring, remote access control, motion detection, and tamper alarms.
• Flexible Connectivity: Choose between wired IP or wireless 4G depending on site requirements.
• Smart Home Integration: Voice control via popular smart assistants.
• Comprehensive Access Options: Keypad, app, and remote access commands.
• Visitor Management: Voicemail feature for missed callers.

Ideal Applications:

• Residential properties (houses, apartments, estates)
• Commercial buildings and offices
• Gated communities
• Industrial facilities
• Remote properties requiring robust access control and monitoring.
