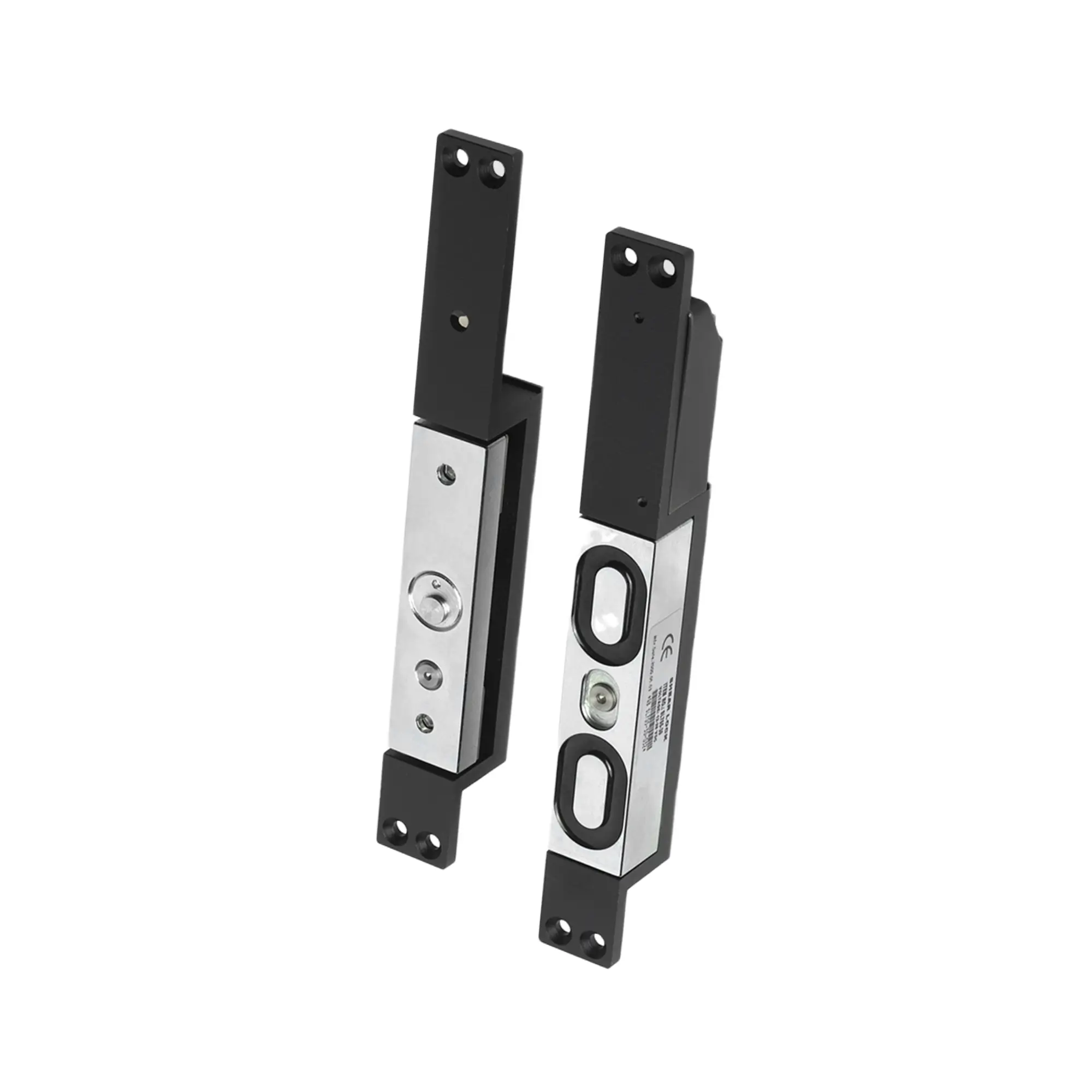

GEM GS705-30 – Slim Self Aligning Shearlock For Swing Doors

Reliable and Concealed Security for Swing Doors

The GEM GS705-30 Slim Self Aligning Shearlock is designed for applications where doors swing up to 180 degrees, offering a sleek and secure solution for various settings. This shearlock features a totally concealed mechanism, ensuring a clean aesthetic while providing robust security. Its ability to self-align and detect proper armature contact makes it an ideal choice for demanding access control environments.

Key Features:

• Slimline Profile: Its sleek design makes it perfectly suited for installations on narrow door frames, where traditional locks may not fit, and also ideal for glass doors.
• Totally Concealed Mechanism: The lock is mortise mounted, ensuring the entire mechanism is hidden within the door frame, providing a clean aesthetic and enhanced security against tampering.
• Self-Aligning Functionality: Features a built-in bond sensor that detects proper armature plate contact, ensuring perfect alignment before the electromagnet energises. This eliminates potential misalignment issues and guarantees a secure lock.
• High Holding Force: Boasts an impressive 2000lbs (approximately 907kg) holding force, providing robust security against forced entry.
• Fail-Safe Operation: Designed to unlock in the event of a power failure, ensuring safe egress in emergencies.
• Adjustable Relock Time Delay: Offers a configurable relock time delay from 1 to 6 seconds (defaulting to 3 seconds), allowing for customized access flow.
• Optimised for Door Gaps: Designed to work effectively with a typical door gap of 1/8" (3mm) between the door top and frame.
• Special Push-Off Device: The armature plate is equipped with a special push-off device to eliminate any residual magnetism, ensuring smooth and consistent unlocking.
• Versatile Installation: Suitable for horizontal or vertical mortise installation.
• Dual Voltage Input: Operates on both 12 VDC and 24 VDC power supplies.

Technical Specifications:

• Voltage: 12 to 24VDC
• Bond Sensor: Included
• Holding Force: 2000lbs
• Relock Time Delay: Adjustable from 1 to 6 seconds (default 3 seconds)
• Door Gap: 1/8" (3mm)
• Mounting Options: Mortise mount

Benefits of the GEM GS705-30 Slim Self Aligning Shearlock:

• Enhanced Security: Provides a strong holding force to keep doors securely locked.
• Reliable Performance: Self-aligning feature ensures consistent and dependable operation.
• Sleek Aesthetic: Concealed mechanism offers a clean and unobtrusive look.
• Versatile Applications: Suitable for various door types and installation methods.
• Safety Assurance: Bond sensor and fail-safe operation enhance safety and reliability.
• Ease of Use: Special push-off device ensures easy door opening, preventing residual magnetism issues.

Ideal Applications:

• Commercial Buildings: Offices, retail stores, and other commercial establishments.
• Public Buildings: Schools, libraries, and government facilities.
• Industrial Facilities: Warehouses and manufacturing plants.
• Healthcare Facilities: Hospitals and clinics.
• Residential Buildings: Apartments and high-security homes.
