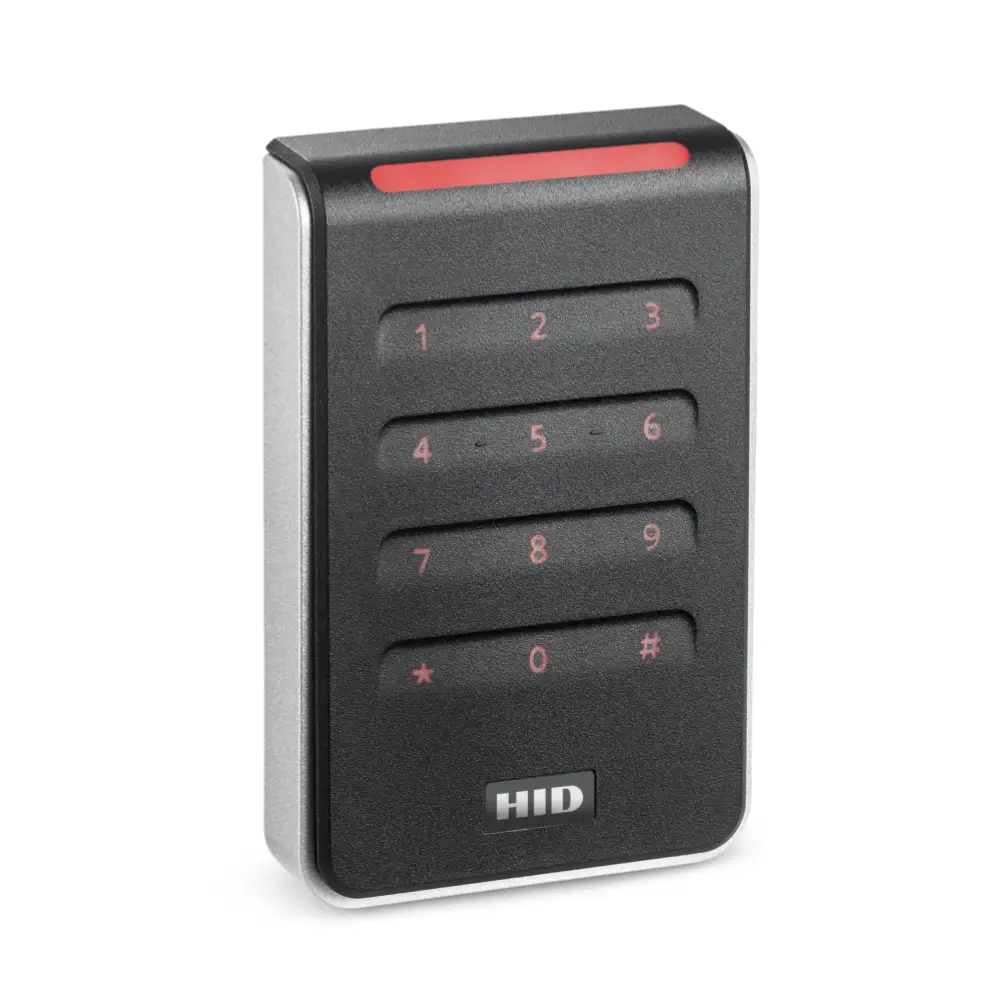

HID Signo 40K Multi-Technology Keypad Reader

Name: HID Signo 40K Keypad Reader | Multi-Tech Access
Brand: HID
SKU: Signo40K-VP
Availability: InStock

Excl VAT: £280.00 - £325.00

Price range: £336.00 through £390.00

inc. VAT

The HID Signo 40K is a wall switch multi-technology access control reader with an integrated keypad, designed for secure and flexible door access. Supporting mobile credentials, 125 kHz proximity cards, 13.56 MHz smart cards and PIN entry, it is suitable for offices, campuses, healthcare, data centres and restricted areas.

Versions

connection-type

Clear

Qty

Enquire today

Category:

HID Readers

Full Description

The HID Signo 40K is a powerful wall-mounted access control reader with integrated keypad functionality, designed to support a wide range of credential technologies in one secure and future-ready device. Built for modern access control systems, it allows organisations to manage entry using physical credentials, mobile access and PIN-based authentication.

With support for Bluetooth and NFC mobile credentials, 125 kHz proximity cards and 13.56 MHz smart card technologies, the HID Signo 40K gives installers and end users the flexibility to work with both existing credentials and newer secure access solutions. The integrated keypad also enables PIN entry or multi-factor authentication, adding another layer of control for higher-security areas.

The reader features advanced security protections, including an EAL5+ certified secure element, OSDP secure channel capability and support for secure authentication protocols. It can also be configured and managed using HID Reader Manager or through OSDP, helping simplify setup, updates and ongoing administration.

With an IP65-rated housing, the Signo 40K is suitable for both indoor and outdoor installations, making it a strong choice for commercial buildings, restricted areas, campuses and secure facilities.

Key Features Of The HID Signo 40K Series

Multi-technology wall switch reader with integrated keypad
Supports mobile access via Bluetooth and NFC
Compatible with 125 kHz proximity credentials
Supports a range of 13.56 MHz smart card technologies
PIN entry support for keypad-based access control
Suitable for multi-factor authentication applications
EAL5+ certified secure element hardware
Native OSDP secure channel capability
Remote configuration via HID Reader Manager or OSDP
IP65-rated housing for indoor and outdoor use
Future-ready design for evolving access control requirements
Suitable for offices, campuses, healthcare sites, factories and restricted areas

Available Variations

SKU	Product Description
40KTKS-00-000000	HID Signo 40K multi-technology reader with keypad, Standard Profile, terminal connection
40KNKS-00-000000	HID Signo 40K wall-mounted multi-technology reader with keypad, Standard Profile, pigtail connection
40KTKS-01-000000	HID Signo 40K wall switch-mounted reader with keypad, SEOS Profile, terminal connection
40KNKS-01-000000	HID Signo 40K wall switch-mounted reader with keypad, SEOS Profile, pigtail connection
40KTKS-02-000000	HID Signo 40K wall switch-mounted reader with keypad, Smart Profile, terminal connection
40KNKS-02-000000	HID Signo 40K wall switch-mounted reader with keypad, Smart Profile, pigtail connection

Benefits

Improved access security – Supports advanced authentication methods and secure communication protocols.
Flexible credential support – Works with mobile, proximity and smart card technologies.
Keypad convenience – Enables PIN access or multi-factor authentication.
Simplified management – Can be configured remotely using HID Reader Manager or OSDP.
Future-ready investment – Designed to support evolving access control requirements.
Indoor and outdoor use – IP65-rated construction supports a wide range of installation environments.

Technical Specifications

Product range: HID Signo 40K
Reader type: Wall switch multi-technology reader with keypad
Credential support: Mobile credentials, 125 kHz proximity cards and 13.56 MHz smart cards
Mobile access: Bluetooth and NFC supported
Keypad: Integrated keypad for PIN-based access
Security: EAL5+ certified secure element hardware
Communication security: Native OSDP secure channel capability
Management: HID Reader Manager or OSDP configuration
Installation type: Wall-mounted / wall switch-mounted
Environmental rating: IP65
Connection options: Terminal or pigtail, depending on model
Profile options: Standard Profile, SEOS Profile or Smart Profile
See Full HID Signo 40k Data Sheet

Ideal Applications

Office buildings and commercial premises
Business campuses
Data centres and server rooms
Manufacturing facilities
Hospitals and healthcare environments
Government buildings
Restricted areas within larger organisations
Sites requiring PIN, card and mobile credential options

FAQ

What is the HID Signo 40K used for?

The HID Signo 40K is used as a secure access control reader for doors, entrances and restricted areas. It supports card, mobile and keypad-based access methods.

Does the HID Signo 40K support mobile credentials?

Yes. The reader supports mobile access via Bluetooth and NFC, allowing compatible mobile credentials to be used for touchless access control.

What is the difference between the available HID Signo 40K models?

The models vary by credential profile and connection type. Options include Standard Profile, SEOS Profile and Smart Profile versions, with either terminal or pigtail connections.

Specifications

Weight	160 g
Brand	HID
Versions	Seos Profile, Smart Profile, Standard Profile
Frequency	125 kHz (RFID), 13.56 MHz, 2.45 GHz
Mounting	Surface mount
connection-type	Pigtail / cable connection, Terminal connection
Annunciation	Sounder, Tri-Colour LED
Operating Temperature	-35°C to 66°C
Protection Rating	IP65
Output Protocol	Clock & Data, OSDP, Wiegand
Device Type	Reader, Keypad
Reader and Card Technology	AWID, Bluetooth, EM Proximity (125 kHz), HID iCLASS, HID Prox (125 kHz), HID Seos, Indala Proximity (125 kHz), NFC, Desfire, MiFare, Mifare / Desfire CSN Only
SKU	40KTKS-00-000000, 40KNKS-00-000000, 40KTKS-01-000000, 40KNKS-01-000000, 40KTKS-02-000000, 40KNKS-02-000000
