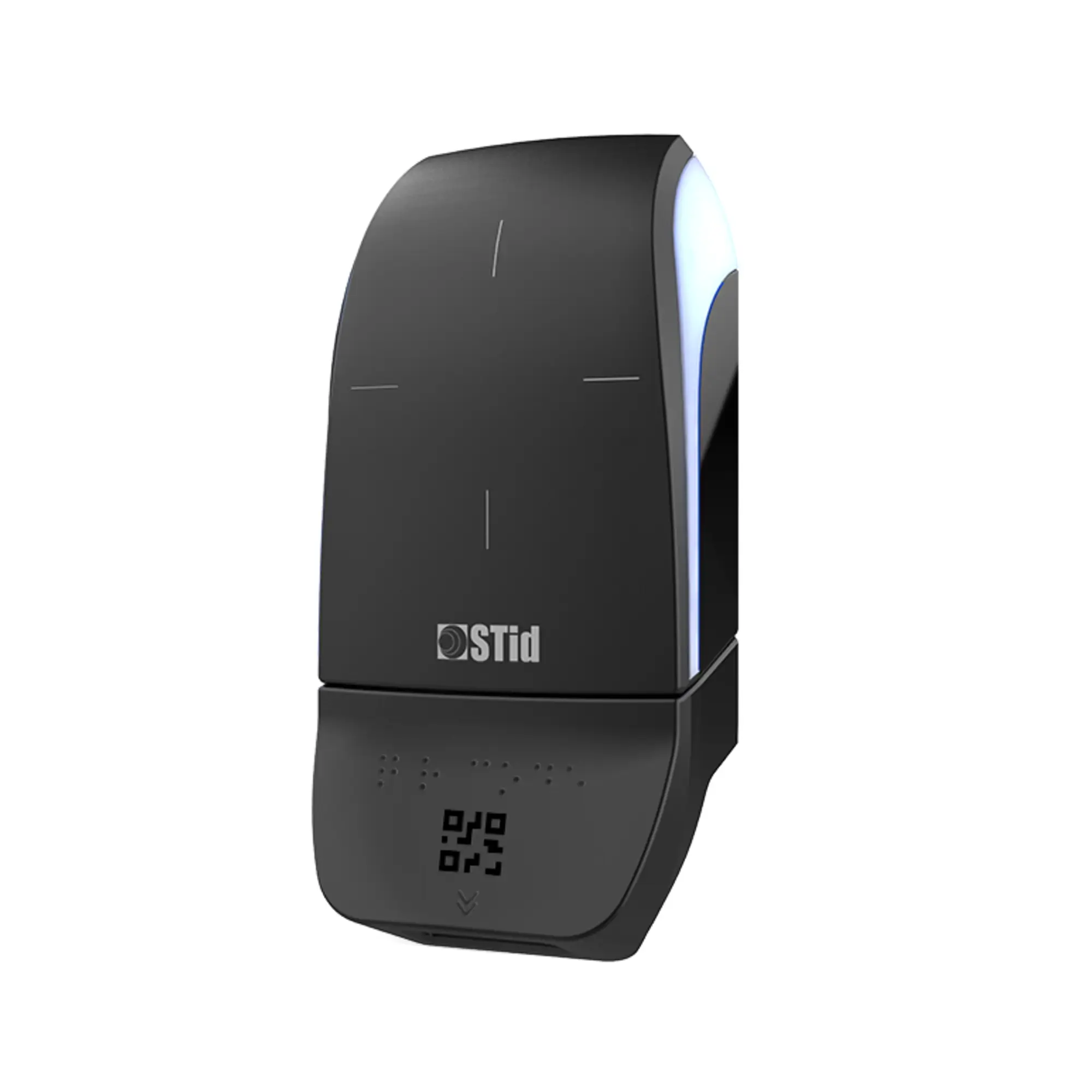

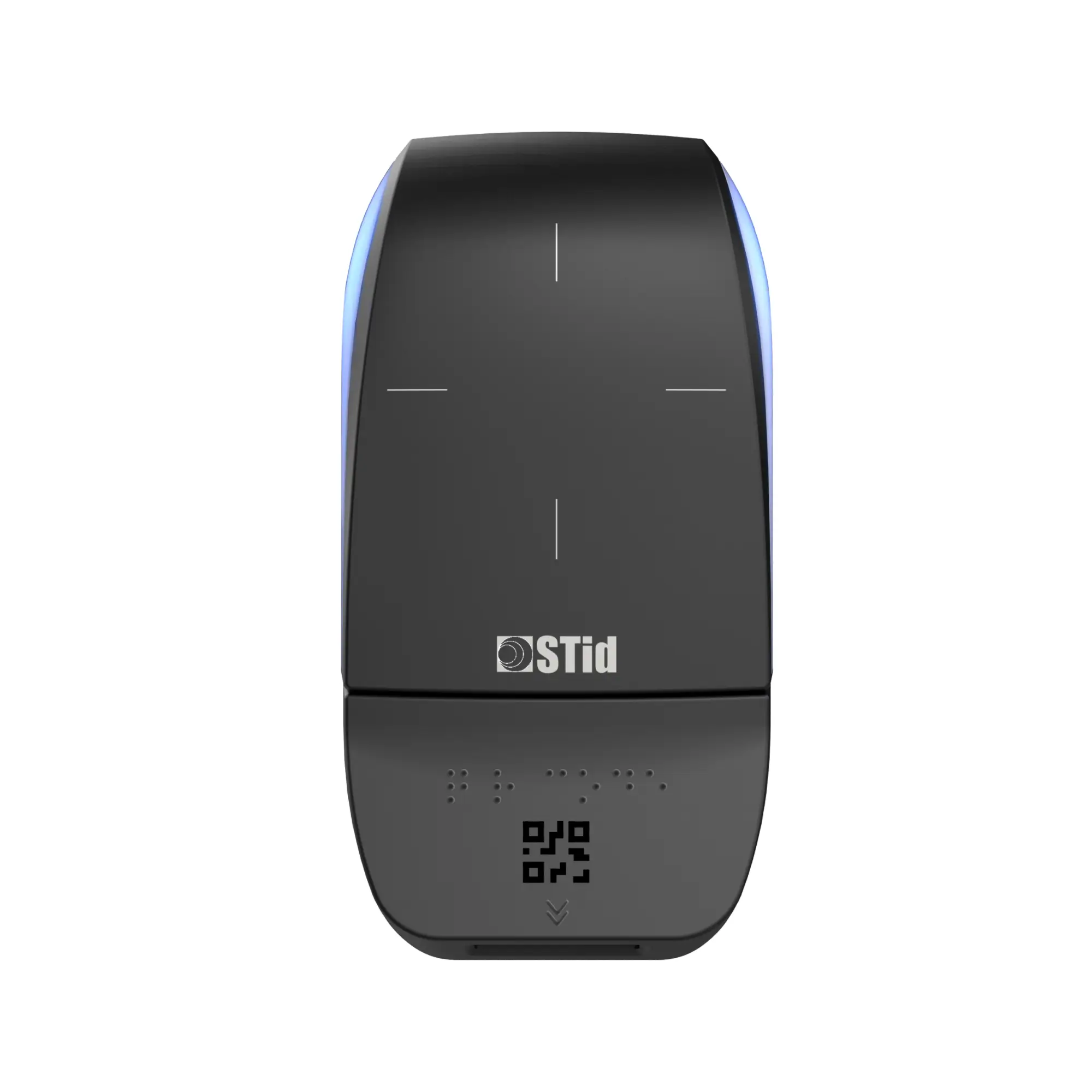

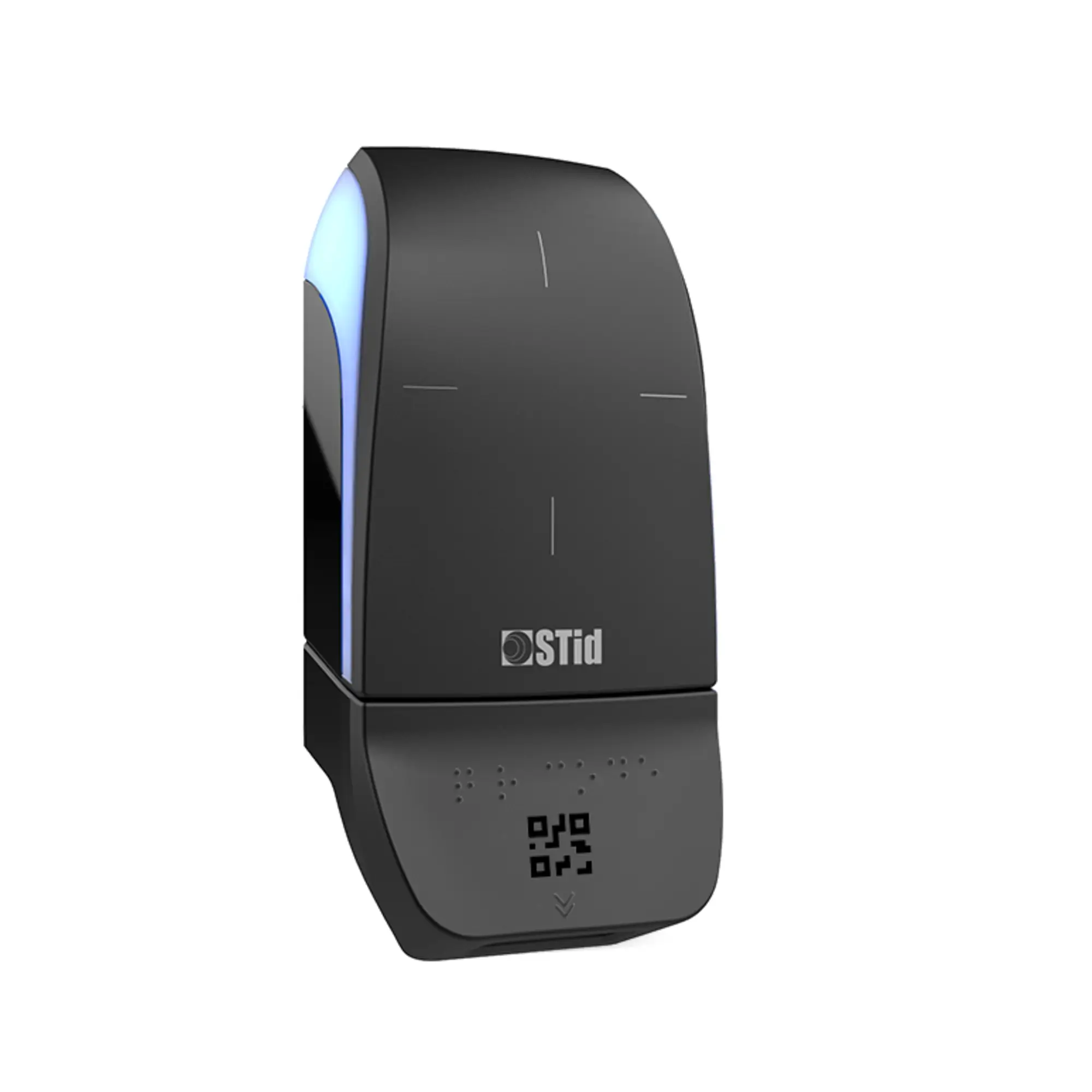

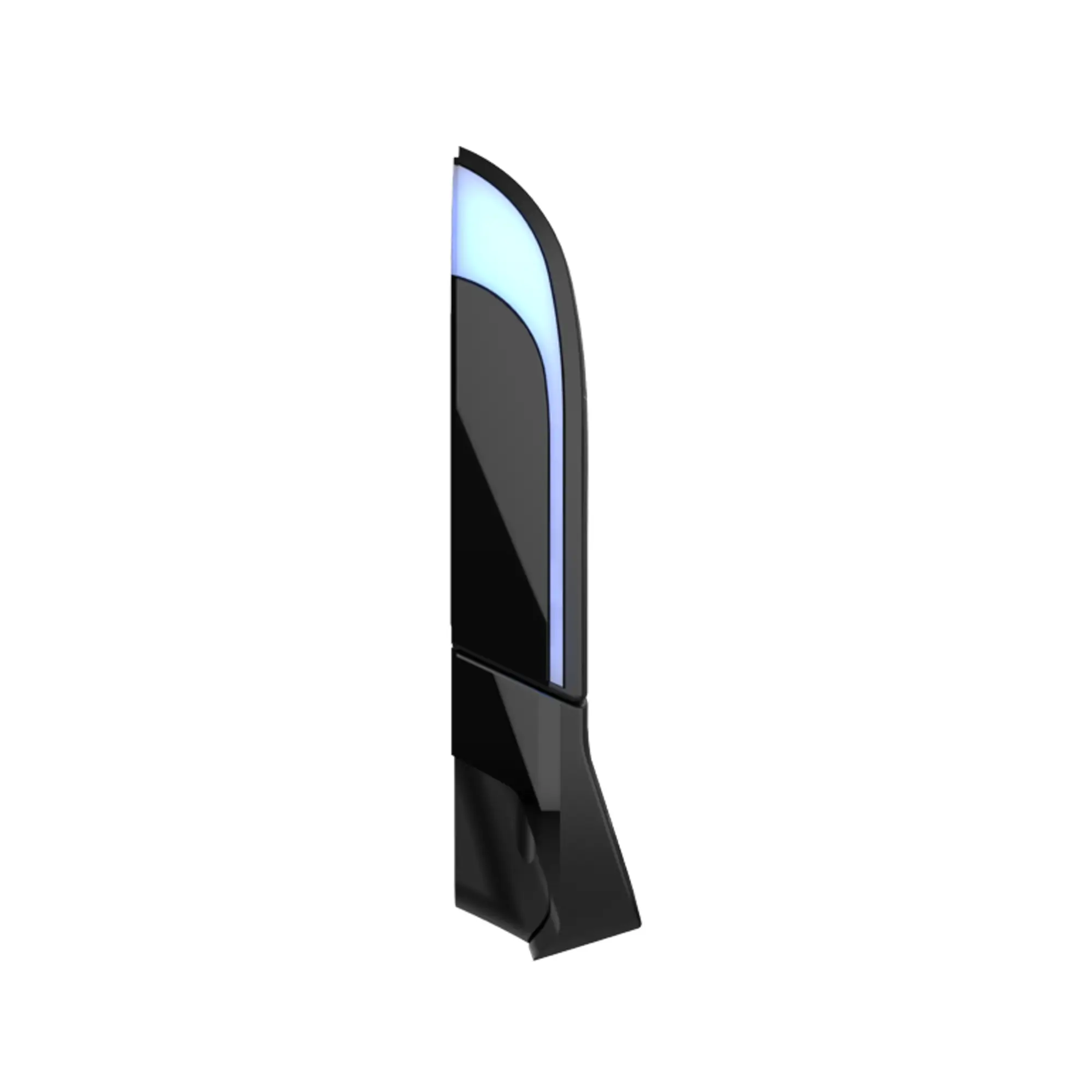

STid ARCS-AQ/BT Series – Multi-Technology Reader With QR Code Scanner And NFC
Excl VAT: £742.50
£891.00
inc. VATThe STid ARCS-AQ/BT Series – Multi-Technology Reader With QR Code Scanner And NFC is a versatile and secure access control reader that combines multiple identification technologies. Its ability to read QR codes, RFID, NFC, and Bluetooth credentials, coupled with its robust design and customisable features, make it an ideal solution for various applications.
Key Features:
- Multi-Technology Support: Accepts RFID (MIFARE Classic, Plus, DESFire), NFC, Bluetooth, and QR code credentials for diverse user profiles.
- QR Code Scanning: Enables rapid and convenient access for visitors, contractors, or temporary personnel.
- Robust Construction: IP65 rating ensures durability in various environments.
- Enhanced Security: Accelerometer-based tamper detection and secure communication protocols protect against unauthorised access.
- User-Friendly Design: Clear visual feedback and ergonomic design for intuitive user interaction.
Category:
STid Reader And KeypadsFull Description
Versatile Multi-Technology Access Control with QR Code, RFID, and NFC
The STid ARCS-AQ/BT Series Multi-Technology Reader With QR Code Scanner And NFC is a cutting-edge multi-technology reader designed to meet the evolving needs of modern access control systems. This versatile device offers a combination of RFID, NFC, Bluetooth, and QR code reading capabilities, providing a flexible and secure solution for user identification.
Key Features of The STid ARCS-AQ/BT Series:
- Multi-Technology Support: Accepts RFID (MIFARE Classic, Plus, DESFire), NFC, Bluetooth, and QR code credentials for diverse user profiles.
- QR Code Scanning: Streamlines visitor management and temporary access with fast and reliable QR code reading.
- Robust Construction: IP65 rating and IK08 impact resistance ensure durability in challenging environments.
- Secure Communication: Supports multiple communication protocols (TTL, Wiegand, RS485, OSDP) with encryption options.
- Advanced Features: Includes accelerometer-based tamper detection and dual LED indicators for enhanced security and user feedback.
Technical Specifications:
- Reading Technologies: RFID, NFC, Bluetooth, QR Code
- Communication Protocols: TTL, Wiegand, RS485, OSDP
- Power Supply: 7 VDC to 28 VDC
- Operating Temperature: -30°C to +60°C
- Dimensions: 156.5 x 80 x 36 mm
- Housing: ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
- Protection: IP65, IK08, accelerometer-based tamper detection
- See Full Data Sheet.
Benefits of The STid Multi-Technology Reader With QR Code Scanner And NFC:
- Enhanced Security: Multiple identification methods and tamper detection for robust security.
- User Convenience: QR code scanning and clear visual feedback for easy access.
- Versatility: Suitable for a wide range of applications, including offices, factories, and public spaces.
- Durability: IP65 rating and IK08 impact resistance for reliable performance in challenging environments.
- Flexibility: Supports various communication protocols for easy integration.
Available Models:
Read Only:
-
- ARCS-R31-AQ/BT1-xx/1 – Secure – TTL Wiegand or Clock & Data
- ARCS-S31-AQ/BT1-xx/1 – Secure / Secure Plus – Encrypted TTL Wiegand or Clock & Data
- ARCS-R33-AQ/BT1-7AB/1 – Secure – RS485
- ARCS-S33-AQ/BT1-7AB/1 – Secure / Secure Plus – Encrypted RS485
- ARCS-R33-AQ/BT1-7AA/1 – Secure / EasySecure Interface – RS485
- ARCS-S33-AQ/BT1-7AA/1 – Secure / Secure Plus / EasySecure Interface – encrypted RS485
Controlled by protocol:
-
- ARCS-W33-AQ/BT1-7AA/1 – Secure – SSCP v1 RS485
- ARCS-W33-AQ/BT1-7AD/1 – Secure – SSCP v2 RS485
- ARCS-W33-AQ/BT1-7OS/1 – Secure – OSDP v1 & v2 RS485
Ideal Applications:
- Visitor management systems
- Access control for offices, factories, and industrial sites
- Secure entry points in public spaces
- Parking access control
- Event management
Specifications
| Versions | EasySecure Interface – Encrypted RS485, EasySecure Interface – RS485, Encrypted RS485, Encrypted TTL Wiegand or Clock & Data, OSDP v1 & v2 RS485, RS485, SSCP v1 RS485, SSCP v2 RS485, TTL Wiegand or Clock & Data |
|---|---|
| Brand | STid |
| Device Type | Reader, QR Scanner |
| Reader and Card Technology | Bluetooth, NFC, QR Code, Desfire, MiFare |
| Operating Temperature | -30°C to 60°C |
| Power Requirement | 7 – 28 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz, Bluetooth, NFC, QR Code |
| Mounting | Surface mount |
| Protection Rating | IK08, IP65 |
| Reader Mode | Secure + Read, Controlled by Protocol (Read Write), Read Only |
| SKU | STID-ARCS-W33-AQ/BT1-7OS/1, STID-ARCS-W33-AQ/BT1-7AD/1, STID-ARCS-W33-AQ/BT1-7AA/1, STID-ARCS-S33-AQ/BT1-7AA/1, STID-ARCS-R33-AQ/BT1-7AA/1, STID-ARCS-S33-AQ/BT1-7AB/1, STID-ARCS-R33-AQ/BT1-7AB/1, STID-ARCS-S31-AQ/BT1-xx/1, STID-ARCS-R31-AQ/BT1-xx/1 |
