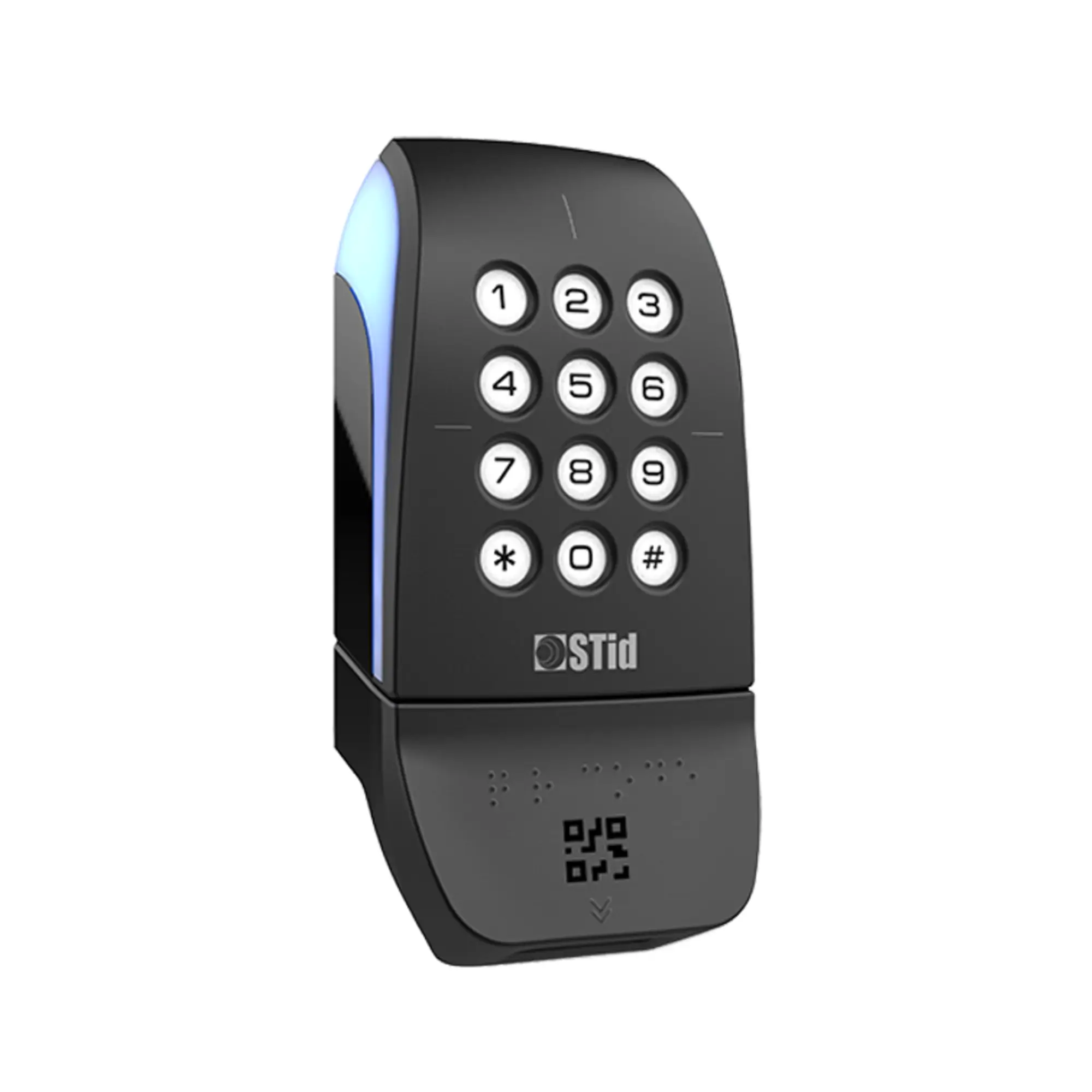

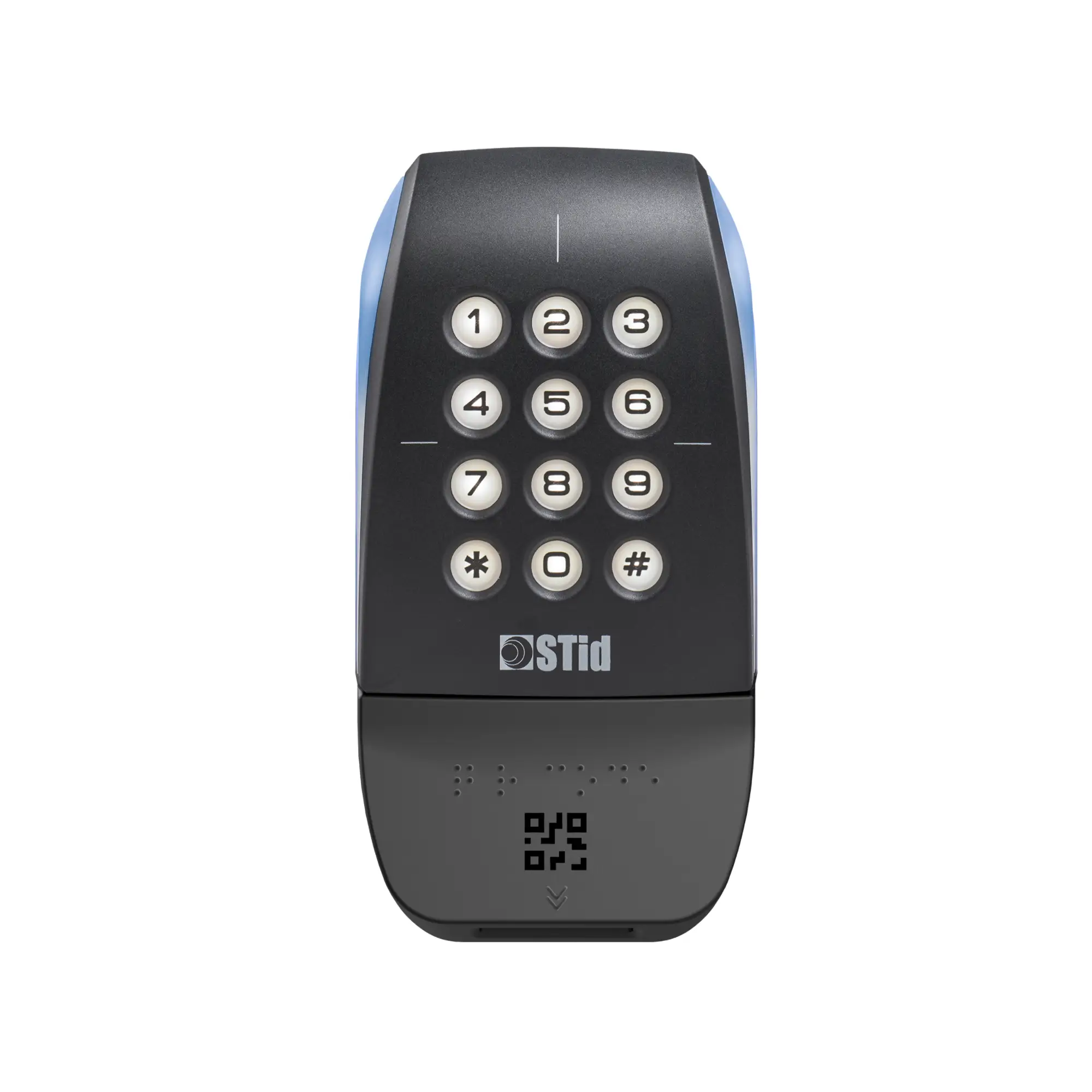

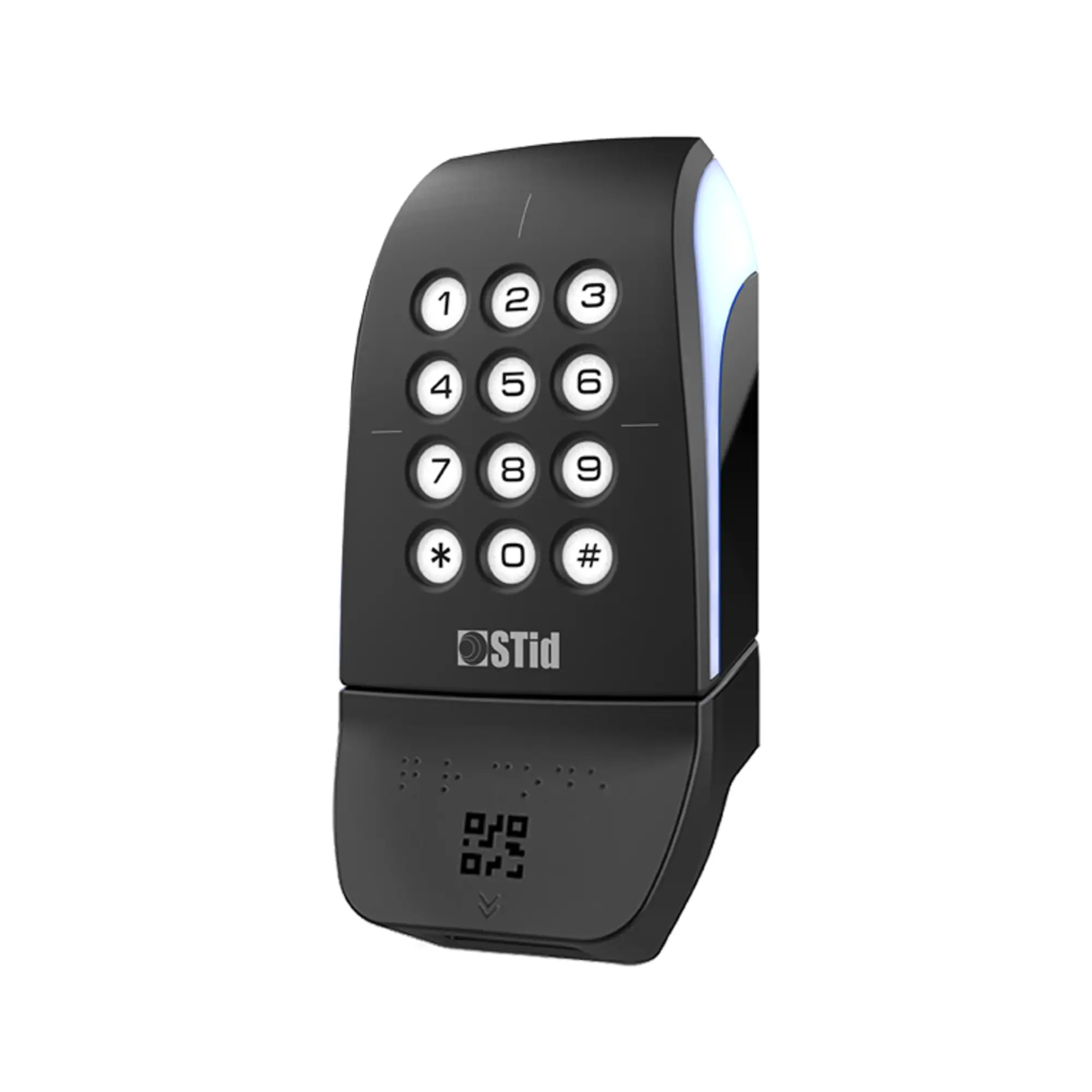

STid ARCS-BQ/BT – Keypad Reader with QR Code and Multi-Technology
Excl VAT: £829.50
£995.40
inc. VATThe STid ARCS-BQ/BT Keypad Reader with QR Code and Multi-Technology is a robust and feature-rich access control reader that combines a keypad, touchscreen, QR code scanner, and RFID technology to provide a versatile and secure solution for various applications.
Key Features:
- Multi-Technology Support: Reads MIFARE Classic, Plus, DESFire, NFC, Bluetooth, and QR codes for diverse user profiles.
- QR Code Scanning: Facilitates quick and easy access for visitors or temporary personnel, even in challenging lighting conditions.
- Vandal-Resistant Keypad: The capacitive keypad offers durability and resistance to tampering.
- Robust Construction: IP65 rating and IK08 impact resistance ensure performance in demanding environments.
- Secure Communication: Supports multiple communication protocols (RS485, OSDP) with encryption options.
- Customisable Functionality: Offers flexible options for configuration and customisation.
Category:
STid Reader And KeypadsFull Description
Enhanced Security and User Experience: The STid ARCS-BQ/BT Keypad Reader
The STid ARCS-BQ/BT is a cutting-edge access control reader that combines a keypad with a QR code scanner, and high frequency MIFARE DESFire technology to provide a secure and user-friendly solution. This versatile reader offers multiple identification methods, making it suitable for various applications.
Key Features:
- Multi-Technology Support: Reads RFID, NFC, Bluetooth, and QR codes for diverse user profiles.
- QR Code Scanning: Facilitates quick and easy access for visitors or temporary personnel.
- Keypad Input: Provides an additional layer of security and user convenience.
- Robust Construction: IP65 rating and IK08 impact resistance for durability in challenging environments.
- Secure Communication: Supports multiple communication protocols (RS485, OSDP) with encryption options.
- Customisable Functionality: Offers flexible options for configuration and customisation.
Technical Specifications:
- Reading Technologies: RFID (MIFARE Classic, Plus, DESFire), NFC, Bluetooth®, QR Code
- Communication Protocols: RS485, OSDP
- Power Supply: 7 VDC to 28 VDC
- Operating Temperature: -30°C to +60°C
- Dimensions: 156.5 x 80 x 36 mm
- Housing: ABS-PC UL-V0 (black)
- Protection: IP65, IK08, accelerometer-based tamper detection
- See Full Data Sheet.
Benefits:
- Enhanced Security: Multiple identification methods and tamper protection for robust security.
- User Convenience: Keypad for easy operation and user interaction.
- Versatile Applications: Suitable for a wide range of environments, including offices, factories, and public spaces.
- Durability: Built to withstand harsh conditions.
- Flexibility: Customisable options to meet specific requirements.
Ideal Applications:
- Access control for offices, factories, and other commercial buildings
- Secure entry points in residential buildings
- Visitor management in public spaces and events
- Secure parking facilities
Specifications
| Dimensions | 156.5 × 80 × 36 mm |
|---|---|
| Frequency | 13.56 MHz, Bluetooth, NFC, QR Code |
| Reader Mode | Secure + Read, Controlled by Protocol (Read Write), Read Only |
| Protection Rating | IK08, IP65 |
| Mounting | Surface mount |
| Brand | STid |
| Construction | ABS |
| Power Requirement | 7-28 VDC |
| Operating Temperature | -30°C to 60°C |
| Reader and Card Technology | Bluetooth, NFC, QR Code, Desfire, MiFare |
| Device Type | Keypad, QR Scanner |
| Versions | EasySecure Interface – Encrypted RS485, EasySecure Interface – RS485, Encrypted RS485, Encrypted TTL Wiegand or Clock & Data, OSDP v1 & v2 RS485, RS485, SSCP v1 RS485, SSCP v2 RS485, TTL Wiegand or Clock & Data |
| SKU | STID-ARCS-R31-BQ/BT1-xx/1, STID-ARCS-S31-BQ/BT1-xx/1, STID-ARCS-R33-BQ/BT1-7AB/1, STID-ARCS-S33-BQ/BT1-7AB/1, STID-ARCS-R33-BQ/BT1-7AA/1, STID-ARCS-S33-BQ/BT1-7AA/1, STID-ARCS-W33-BQ/BT1-7AA/1, STID-ARCS-W33-BQ/BT1-7AD/1, STID-ARCS-W33-BQ/BT1-7OS/1 |
