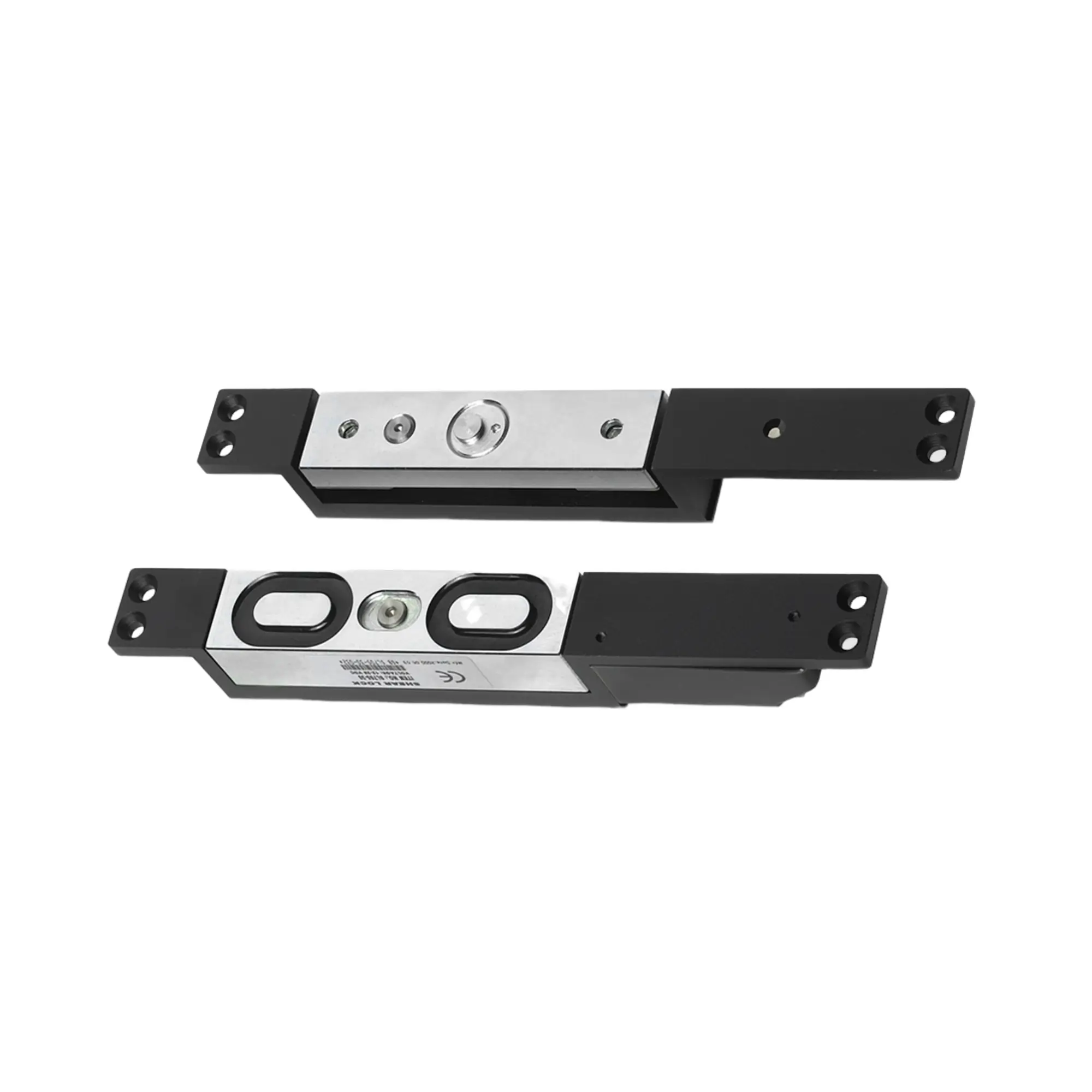

Gem GS705-35 – Shear Aligning Shearmag Lock

Unparalleled Security with the Gem GS705-35

The Gem GS705-35 Shear Aligning Electromagnetic Lock is the ideal solution for demanding security applications. This innovative lock offers unparalleled holding force, automatic misalignment correction, and a concealed mechanism for a sleek and secure aesthetic. With its versatility, reliable operation, and a range of features, the Gem GS705-35 is the perfect choice for securing various door types and enhancing the overall security of your premises.

Key Features:

• Superior Shear Holding Force: Delivers an impressive 2,200lbs of holding force for maximum door security.
• Automatic Misalignment Correction: Eliminates the need for perfect door alignment, ensuring reliable locking even with slight gaps.
• Concealed Mechanism: Provides a clean aesthetic that complements any architectural style.
• Versatile Applications: Suitable for narrow frames, double swing doors, and glass doors.
• Fail-Safe Operation: For safety, the lock automatically releases when power is lost.
• Flexible Installation: Can be installed horizontally or vertically, with surface, mortise, or semi-mortise mounting options.
• Door Status Monitoring (Optional): Provides real-time confirmation of door lock status (available with built-in bond sensor).
• Adjustable Armature Screws: Accommodates wider door gaps for a secure fit.
• Special Push-Off Device: Eliminates residual magnetism, ensuring effortless door opening.
• Wide Operating Temperature Range: Functions reliably in temperatures from -30°C to +50°C.

Technical Specifications:

• Shear Holding Force: 2,200lbs (998kg)
• Power Input: 12-24VDC (self-regulating)
• Current Draw:
  • Pull In: 1.85A, Holding: 0.45A @ 12VDC
  • Pull In: 1.1A, Holding: 0.25A @ 24VDC
• Finish:
  • Magnet and Armature: Zinc Plated
  • Housing: Black Powder Coated
• Monitoring Output: Magnet Bond Sensor Output, SPDT Rating 1A @ 30VDC Dry Contact
• Door Gap: 3mm (1/8”) Maximum
• Operating Temperature: -30°C to +50°C
• Auto Relocking Timer: 1-6 Seconds Adjustable (Default: 3 Seconds)

Benefits of the Gem GS705-35 Shear Aligning Shearmag Lock:

• Enhanced Security: Superior holding force ensures maximum security for your doors.
• Reliable Performance: Automatic misalignment correction guarantees consistent operation.
• Aesthetic Design: Concealed mechanism provides a sleek and unobtrusive look.
• Versatility: Suitable for various door types and installation methods.
• Safety Assurance: Fail-safe operation and optional door status monitoring enhance safety.
• Ease of Use: Special push-off device eliminates residual magnetism for easy door opening.
