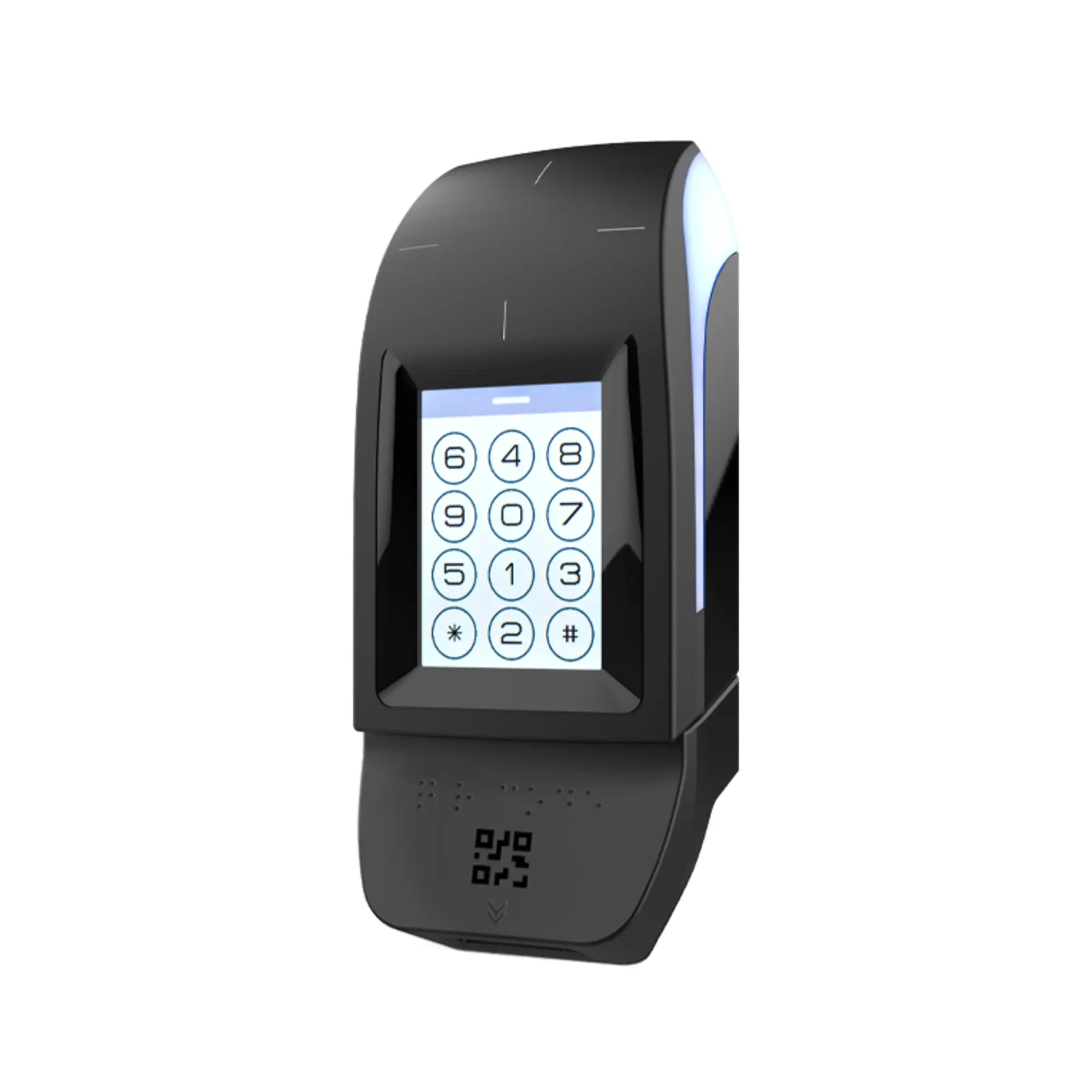

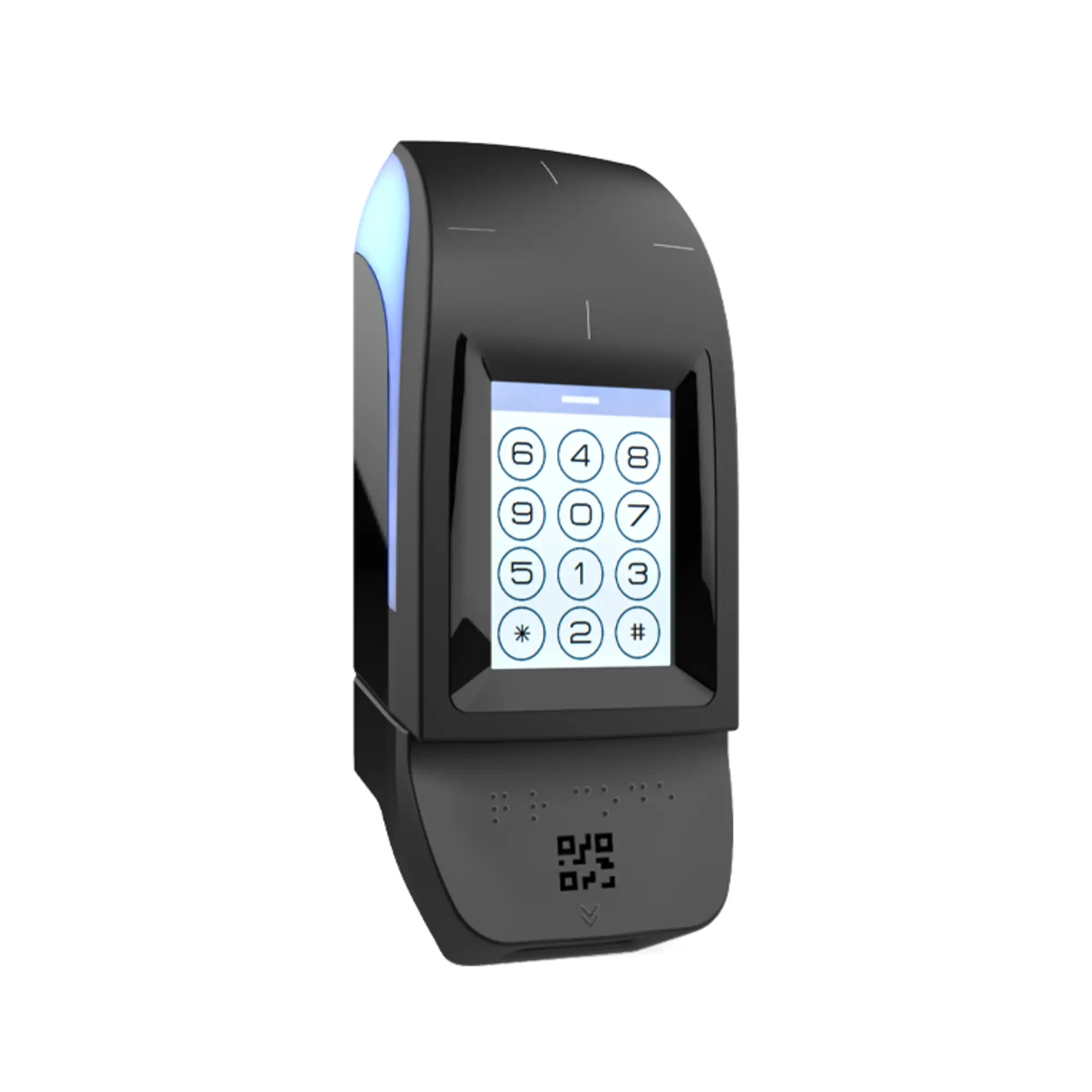

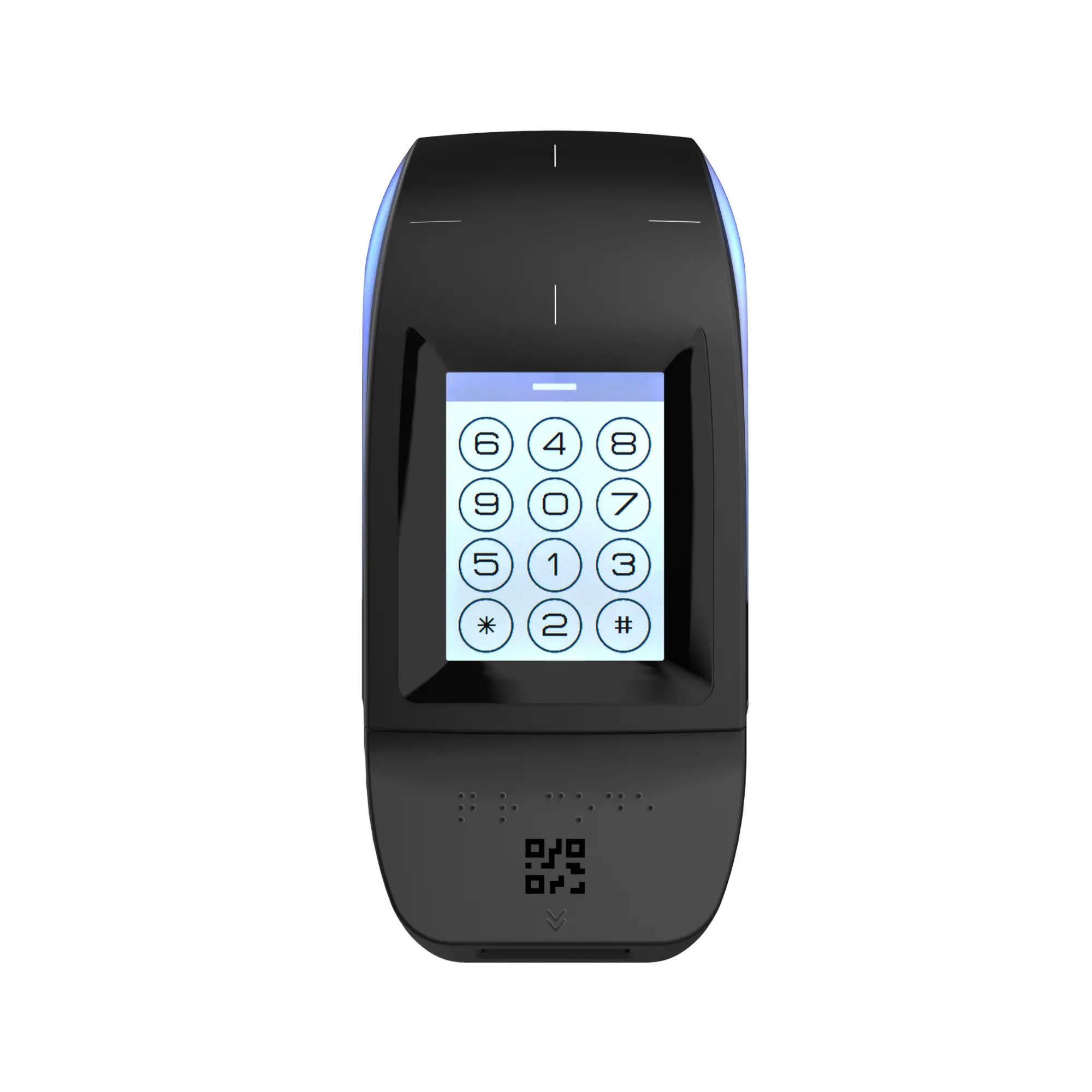

STid ARCS-CQ/BT – Multi-Technology Touchscreen Reader (13.56 MHz + Bluetooth + QR Code)
Excl VAT: £900.00
£1,080.00
inc. VATThe STid ARCS-CQ/BT is a comprehensive and versatile access control reader that combines advanced technology with a user-friendly interface. This multi-technology device offers a flexible and secure solution for various applications, enhancing overall security and user experience.
Key Features:
- Multi-Technology Support: Reads RFID, NFC, and Bluetooth credentials, accommodating various user types and access levels.
- Touchscreen Interface: Enables intuitive user interaction with customisable displays, including logos, instructions, and messages.
- QR Code Scanning: Facilitates quick and easy access for visitors or temporary personnel.
- Robust Construction: IP65 rating ensures protection against environmental factors for both indoor and outdoor use.
- Secure Communication: Supports multiple communication protocols (RS485, OSDP) with encryption options for enhanced security.
- 100% Customisable Buttons: Allows for the creation of custom functions to meet specific application requirements.
Category:
STid Reader And KeypadsFull Description
Multi-Technology Reader for Enhanced Security and Convenience
The STid ARCS-CQ/BT is a cutting-edge access control solution offering multiple identification methods for enhanced security and user convenience. This versatile reader combines a touchscreen, keypad, and QR code scanner to provide a flexible and user-friendly access experience.
Key Features Of The STid ARCS-CQ/BT:
- Multi-Technology Support: The STid Multi-Technology Touchscreen Reader accepts RFID, NFC, Bluetooth, and QR code for diverse user profiles.
- Touchscreen Interface: Enables intuitive interaction with the device for easy configuration and user management.
- Customisable Display: The mixed display allows for personalised messages, logos, and instructions.
- Scramble Pad: Protects access codes by randomising the keypad display.
- Durable Construction: Designed for indoor and outdoor use with IP65 protection and IK08 impact resistance.
- Secure Communication: Supports multiple communication protocols (RS485, OSDP) for seamless integration.
- Flexible Deployment: Can be used as a standalone reader or integrated into larger access control systems.
- See Full Data Sheet.
Technical Specifications:
- Technologies: 125 kHz (RFID), 13.56 MHz, NFC, Bluetooth, QR code
- Interfaces: RS485, OSDP
- Power Supply: 7 VDC to 28 VDC
- Operating Temperature: -20°C to +60°C
- Dimensions: 174.8 x 80 x 36 mm
- Housing Material: ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
- Protection: IP65, IK08
Benefits Of A Multi-Technology Touchscreen Reader:
- Enhanced Security: Multiple identification methods and secure communication protocols provide robust protection.
- User-Friendly Interface: Touchscreen and customisable display improve user experience.
- Versatility: Suitable for a wide range of applications and environments.
- Durability: Built to withstand harsh conditions.
- Flexibility: Supports various communication protocols for easy integration.
Ideal Applications:
- Access control for commercial buildings, offices, and industrial facilities
- Secure entry points for residential flats and gated communities
- Campus and university access management
- Car Park and vehicle access control
Specifications
| Dimensions | N/A |
|---|---|
| Versions | EasySecure Interface – Encrypted RS485, EasySecure Interface – RS485, Encrypted RS485, Encrypted TTL Wiegand or Clock & Data, OSDP v1 & v2 RS485, RS485, SSCP v1 RS485, SSCP v2 RS485, TTL Wiegand or Clock & Data |
| Brand | STid |
| Device Type | Reader, Keypad, QR Scanner |
| Reader and Card Technology | Bluetooth, NFC, QR Code, Mifare / Desfire CSN Only |
| Operating Temperature | -20°C to 60°C |
| Power Requirement | 7-28 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz, Bluetooth |
| Mounting | Surface mount, Wall Mount |
| Protection Rating | IP65 |
| Reader Mode | Secure + Read, Controlled by Protocol (Read Write), Read Only |
| SKU | STID-ARCS-R31-CQ/BT1-xx/1, STID-ARCS-S31-CQ/BT1-xx/1, STID-ARCS-R33-CQ/BT1-7AB/1, STID-ARCS-S33-CQ/BT1-7AB/1, STID-ARCS-R33-CQ/BT1-7AA/1, STID-ARCS-S33-CQ/BT1-7AA/1, STID-ARCS-W33-CQ/BT1-7AA/1, STID-ARCS-W33-CQ/BT1-7AD/1, STID-ARCS-W33-CQ/BT1-7OS/1 |
